PAN FX1BN1NNNSNM001 Opti-Core® 1 Fi

Manufacturer: PANDUIT | Catalog # FX1BN1NNNSNM001 | Codale Part # 4428828
$33.32/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

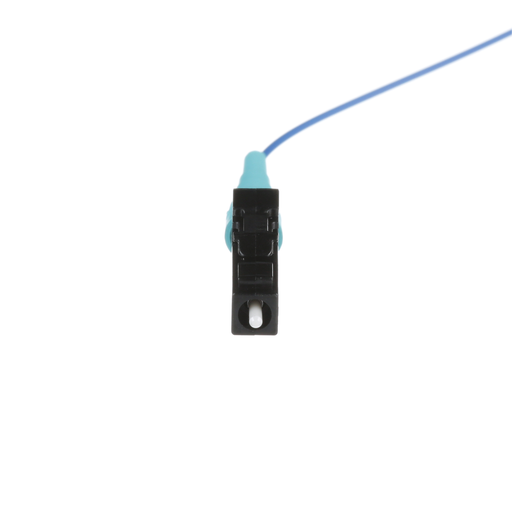

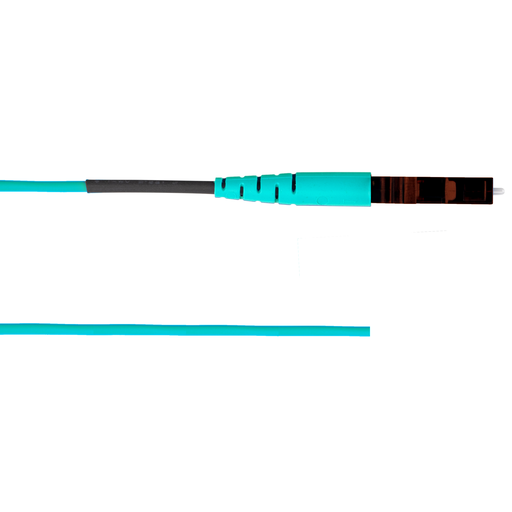

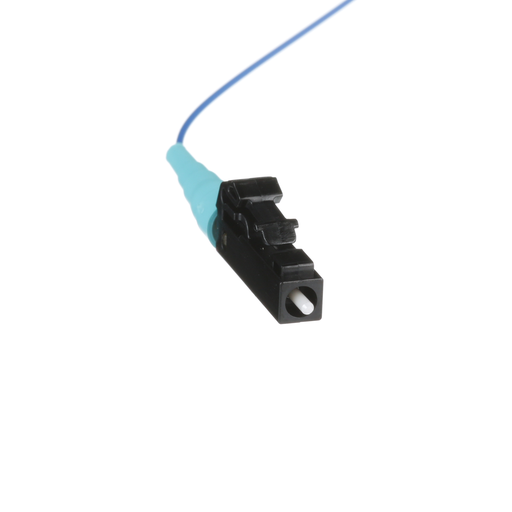

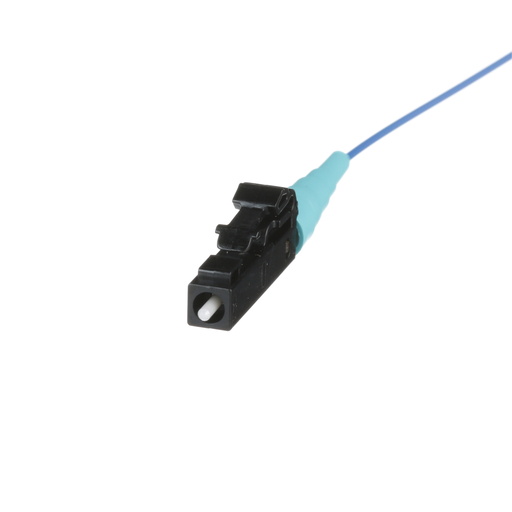

The simplex patch cord is OM3 900.m buffered fiber with no jacket. It features a LC connector to a pigtail, has standard insertion loss and is 1 meter in length.

Technical Information

Applications
Used to Provide Interconnect and Cross-Connect of Applications in Entrance Facilities, Telecommunications Rooms, Data Centers, at the Desk and Network Applications to Interconnect Pre-Terminated Cassettes in Main Distribution, Horizontal Distribution
Body Type
Duplex
Boot Color
Aqua
Cable Type
Simplex
Connector Type
LC Simplex x Pigtail
Fiber Cable Size
50/125 m
Fiber Type
Multimode
Max Operating Temperature
158 degrees F
Min Operating Temperature
-20 degrees C
Number of Fibers
1
Number of Poles
1 Pole
Number of Screws
1
Plug Type
LC Connector - Keyed H (Aqua)
Standard
CSA,NOM,UL
Temperature Rating
158 degrees F
Type
OM3, Multimode, Buffered, 1-Fiber
Wire Size
900?m

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Opti-Core®

General Product Info

12-Digit UPC
074983923373
Cable Color
Aqua
Color
Aqua
Environment
Indoor
Product UPC
07498392337
Weight
0.0500 lb

Dimensions

Cable Length
1 m
Length
3.28 Inch
Outer Diameter
0.118 in
Outside Diameter
NA
Overall Length
3.2 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10)
Prop 65
  • No
