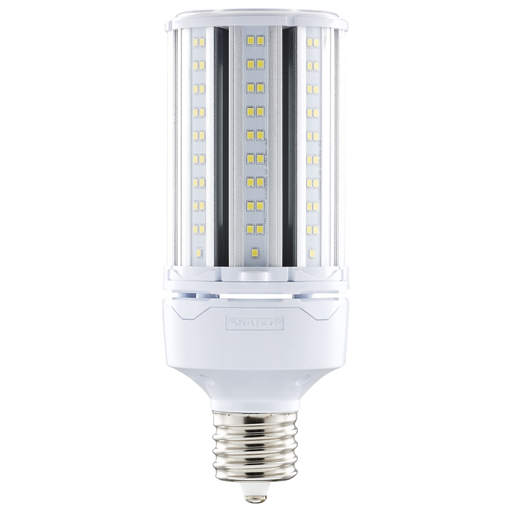

Satco S49674 54W LED HID Replacement; 4000K; Extended Mogul base; Type B Ballast Bypass; Economy Hi-Pro

Manufacturer: SATCO Lighting | Catalog # S49674 | Codale Part # 4431589
$103.25/ea
ea
Log in or register to view your price, purchase history, and more!
29 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
54 Watt LED HID Replacement - 4000K - Extended Mogul Base - Type B Ballast Bypass - Economy Hi-Pro

Technical Information

Amperage
0.540-0.195 Amp
Applications
For Street Lights, Gymnasium Lights, Stadium Lights, Warehouse Lights, Parking Garages and Similar Applications for Lighting Large, Open Areas
Average Rated Life
35000 hr
Ballast Type
Bypass
Beam Angle
300
Beam Spread
300
Color Temperature
4000 K
Correlated Color Temp
4000 K
Dimmable?
No
Incandescent Equivalent
200 W
Indoor Outdoor
Indoor;Outdoor
IP Rating
IP65
Lens Color
Clear
Lens Material
Polycarbonate
Lumens
7,560 Lumen
Material
Plastic
Operating Temperature
-22 degrees F
Power Factor
0.9
Technology Type
LED
Temperature Rating
-25 to 45 degrees C
Type
LED HID
Voltage
100 Volt
Wattage
54 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923496745
Environmental Conditions
Damp Location Rated
Finish
White
Housing Color
White
Product UPC
04592349674
Weight
1.9 lb

Dimensions

Diameter
8 Inch
Warranty Length
3 yr

Certifications and Compliance

Country of Origin
China
Features
  • High lumen per watt ratio
  • Superior LED light output
  • Rated for use in enclosed fixtures
  • Advanced thermal management
  • Suitable for use in damp locations
  • Up to 35000 Hours of use
  • 3kV built-in surge protection

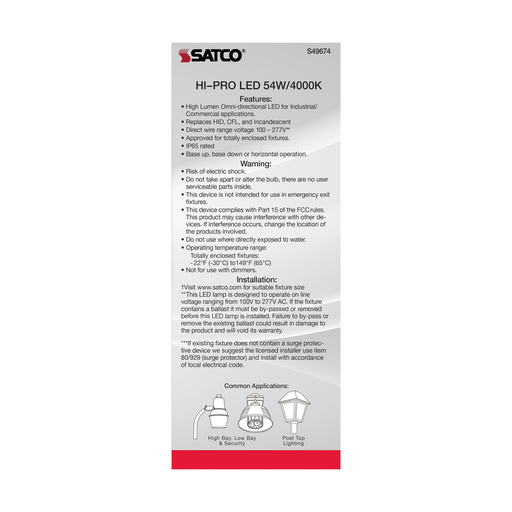

Ballasting Requirements
  • Ballast Bypass
Installation Notes
  • Not for use in vapor tight fixtures.
Replaced By Products
  • S29674
  • S39674
  • S9674
