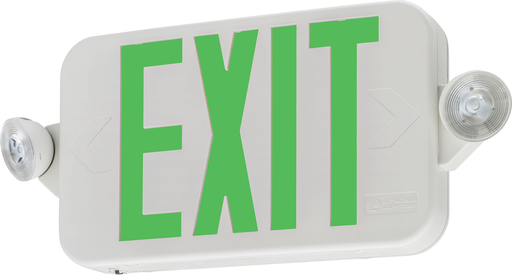

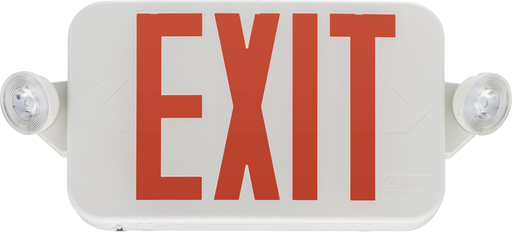

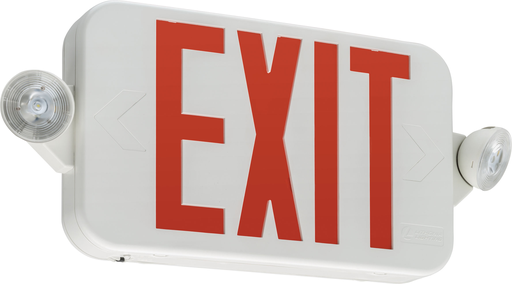

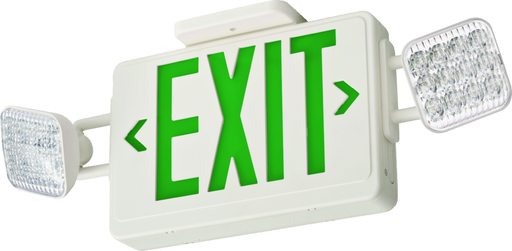

Lithonia ECRG-HO-SQ-M6 LED Emergency Light/Exit Combo Unit, Switchable Red/Green Letters, Square Lamp Heads, Remote Capacity, Thermoplastic, 120V-277V

Manufacturer: Lithonia Lighting | Catalog # ECRGHOSQM6 | Codale Part # 4431724
$177.02/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

Technical Information

Applications
Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks,Retail
Color Rendering Index
75
Color Temperature
6200 K
Correlated Color Temp
6200 K
Lumens
113 Lumen
Material
Thermoplastic
Mounting Type
Surface
Type
Emergency Exit Sign
Voltage
120 Volt

Manufacturer Information

Brand
Lithonia Lighting
Sub Brand
Contractor Select

General Product Info

12-Digit UPC
194994900504
Color
White
Construction
New Construction,Remodel
Environment
Indoor
Environmental Conditions
Indoor
Finish
Textured
Fixture Type
Emergency Exit Sign
Product UPC
19499490050
Shape
Square
Weight
3.25 lb

Dimensions

Height
7.95 Inch
Length
19.09 Inch
Width
4.33 in

Certifications and Compliance

Country of Origin
China,China
Standards
  • NFPA 101
  • NFPA 70
  • ULCA Title 20
Applications
  • Education
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Offices & Banks
  • Retail
Features
  • CUSTOMIZATION: The EXRG LED Exit Sign has an internal switch for red or green color selection
  • HOUSING: Features bright white thermoplastic housing; fully assembled single-face exit comes with an extra faceplate and red and green panel inserts
  • VOLTAGE: Dual-voltage 120/277, 60Hz
  • RATINGS / LISTINGS: UL Listed, meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), FCC Title 47, Part 15, Subpart B and OSHA, Indoor damp location 50°F to 104°F (10°C to 40°C) listed
  • INSTALL / MOUNTING: Top, side and back mount options; Mounting pattern on canopy (top and side mount) and back plate (back mount) fits most standard size junction boxes
  • HOURS OF LIFE: The typical life of the LED lamp is 10 years
  • DESIGN FEATURE: Provides a minimum of 90 minutes illumination for the rated wattage upon loss of AC power to meet code required emergency lighting
  • BATTERY: 3.6V maintenance-free, rechargeable, nickel metal hydride
  • WARRANTY: 2-Year Limited Warranty
  • DIMENSIONS: 16.5in x 2.05in x 7.25in
