HCI HBL5362M4 CAT#HBL5362, ORANGE

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5362M4 | Codale Part # 4431854
$55.73/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

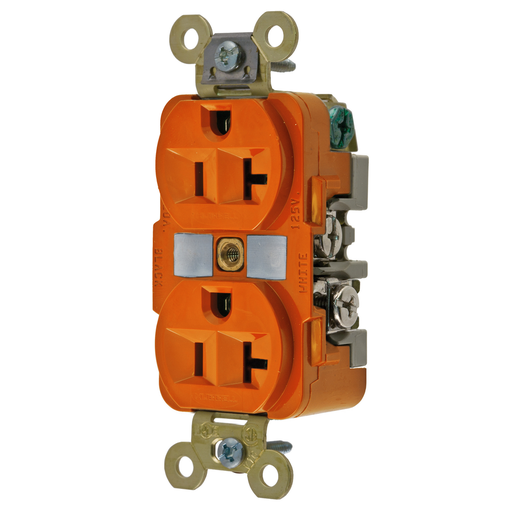

Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Orange, Bulk Pack

Technical Information

Amperage
20 Amp
Base Material
PBT
Conductor Size
14-10 AWG
Current
20 Amp
Face Material
Nylon
Horsepower
1 hp
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File E2186
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated

General Product Info

12-Digit UPC
783585000497
Color
Orange
Product Series
HBL Extra Heavy Duty
Product UPC
78358500049
Weight
0.25 lb

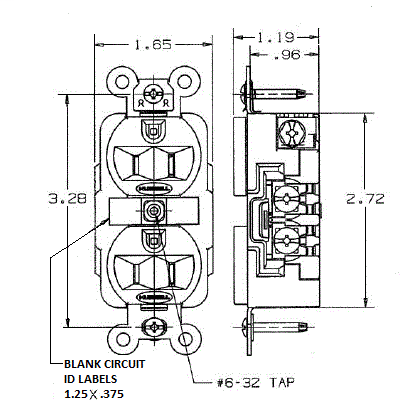

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.400 in

Certifications and Compliance

Country of Origin
USA
Features
  • Back wired ground terminal allows faster, easier installation
  • One-piece brass integral ground strap
  • Finder Groove Face
  • Deep body design with circuit ID
  • face Bulk Packed
  • Bulk Packed
