PAN F92ELLNSNSNM002 OS2 2F 1.6MM PC

Manufacturer: PANDUIT | Catalog # F92ELLNSNSNM002 | Codale Part # 4433634
$71.08/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet

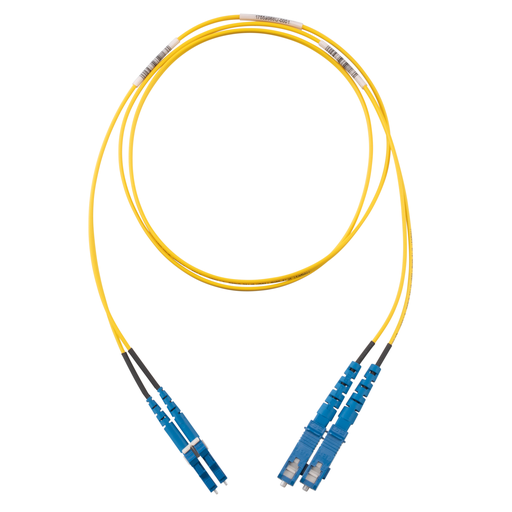

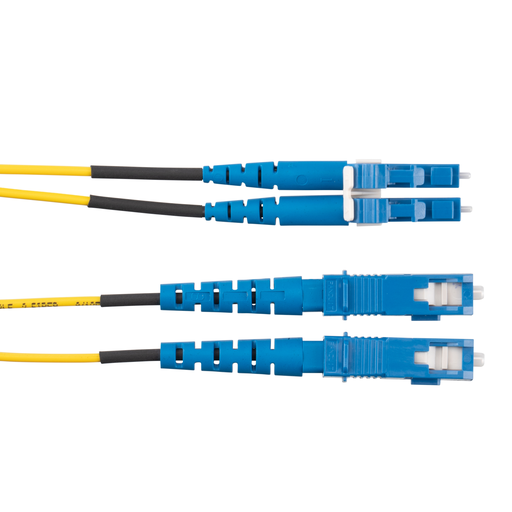

OS1/OS2 2-fiber 1.6mm jacket, patchcord, Low Smoke Zero Halogen (LSZH) rated, LC duplex to SC duplex, Std. IL.

Technical Information

Applications
For Entrance Facilities, Telecommunications Rooms, Data Centers, At the Desk and Network Applications to Interconnect Pre-Terminated Cassettes In Main Distribution, Horizontal Distribution, and Equipment Distribution Areas
Bend Radius
16 mm
Body Type
Duplex
Boot Color
Green
Cable Type
Duplex
Connector Type
LC Duplex x SC Duplex
Fiber Cable Size
9/125 m
Max Operating Temperature
140 degrees F
Min Operating Temperature
-10 degrees C
Number of Fibers
2
Number of Poles
2 Pole
Number of Screws
2
Plug Type
SC Duplex
Temperature Rating
-20 to 70 degrees C
Type
OS1/OS2, Singlemode, 2-Fiber
Wire Size
1.6 mm

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Opti-Core®

General Product Info

12-Digit UPC
074983739417
Cable Color
Yellow
Color
Orange
Environment
Indoor
Product UPC
07498373941
Weight
0.0800 lb

Dimensions

Cable Length
2 m
Length
6.56 Foot
Outer Diameter
0.06 in
Outside Diameter
NA mm
Overall Length
6.5 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania
