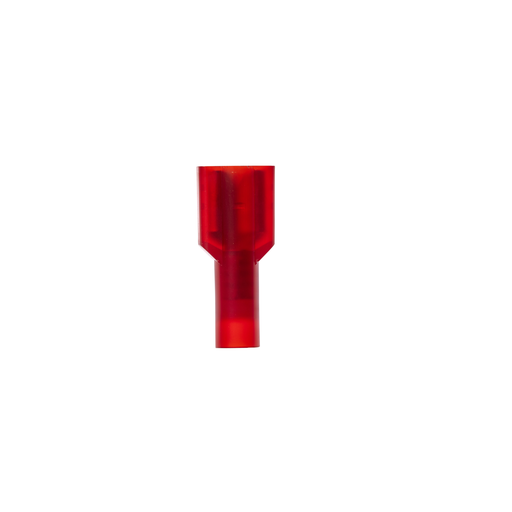

Product image for 3M FDV10-250Q 25/Bag Highland Vinyl Insulated Female Disconnect Terminal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

3M FDV10-250Q 25/Bag Highland Vinyl Insulated Female Disconnect Terminal

Manufacturer: 3M | Catalog # 7000133661 | Codale Part # 4436395
$22.04/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
3M™ Highland™ Color-Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Diameter
0.128 in
Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
10 AWG
Insulation Material
Vinyl
Material
PVC
Max Voltage
1000 V
Standard
CSA,E2186,UL
Tc Connection
4-pin DC Micro,4 Pin Micro Quick Disconnect
Terminal Style
Standard
Terminal Type
Standard
Type
E1 Plus Solid State Relay
Wire Size
12-10 AWG

Manufacturer Information

Brand
3M
Sub Brand
Highland™

General Product Info

12-Digit UPC
051128600047
Color
Yellow
Product UPC
05112860004

Dimensions

Length
0.95 Inch
Overall Length
0.95 in
Pad Width
0.25 in
Thickness
0.032 in

Certifications and Compliance

Country of Origin
USA
Features
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
