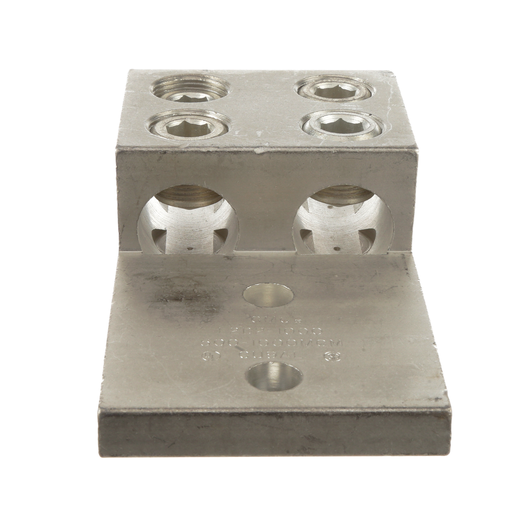

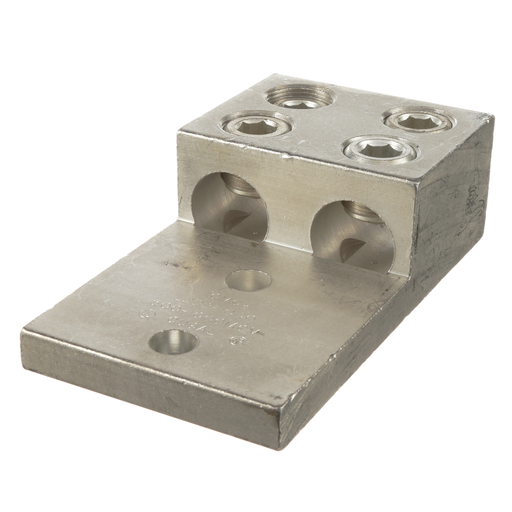

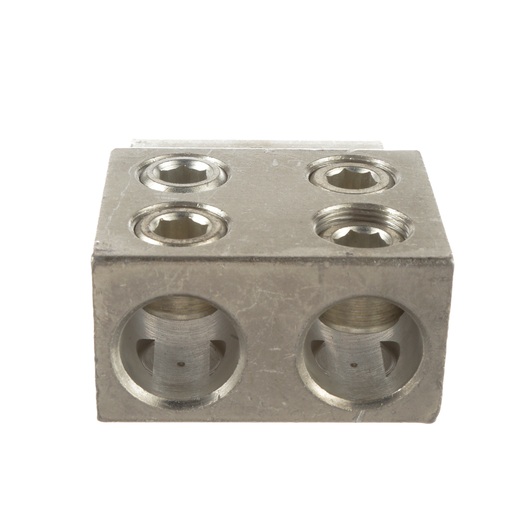

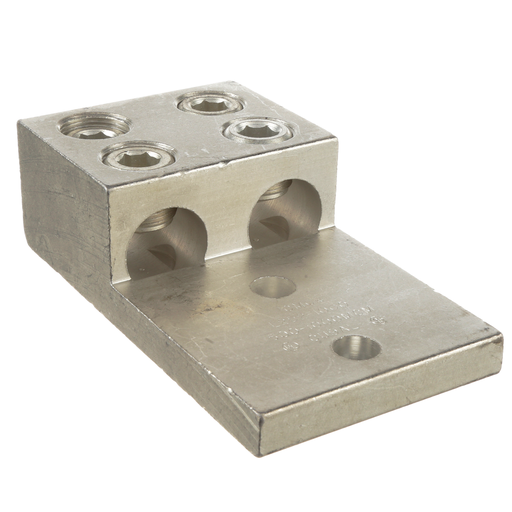

Panduit LAM2LB1000-12-3 Pan-Lug™ Aluminum Mechanical Lug

Manufacturer: PANDUIT | Catalog # LAM2LB1000-12-3 | Codale Part # 4437851
$14,174.94/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Two-hole, aluminum, two barrel lug, dual barrel, type LAM2B, NEMA hole sizes and spacing, 500 - 1000 kcmil, 1/2 (12.7mm) stud hole.

Technical Information

Amperage
NA Amp
Applications
Stranded Aluminum or Copper Code Conductor
Conductor Material
Tin-Plated Aluminum
Material
Aluminum
Number of Holes
2 Hole
Number of Ports
NA
Stud Hole Size
1/2 in
Temperature Rating
90?degrees C (194?degrees F)
Tongue Thickness
0.56 in
Tongue Type
Straight
Tongue Width
3.48 in
Type
Mechanical Lug

Packaging

Pkg Qty
3

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983325832
Finish
Tin Plated
Product Type
Power Connectors
Product UPC
07498332583
Weight
5.8000 lb

Dimensions

Height
1.9 Inch
Length
6.19 Inch
Overall Length
6.19 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
USA
Hazmat Flag
No
Standards and Certifications
  • Standards Met: UL listed and CSA certified for use up to 600V and UL temperature rated to 90 degrees C
