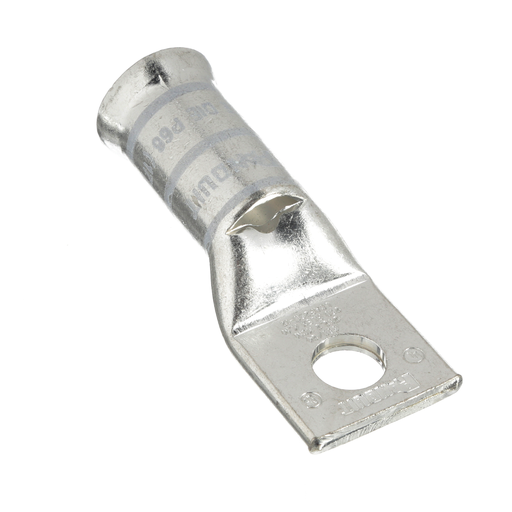

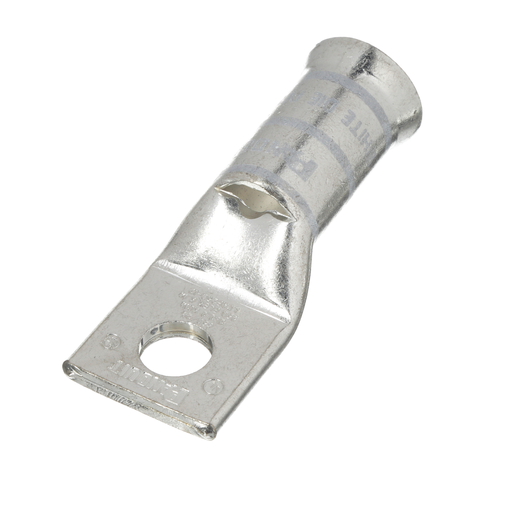

Panduit LCAF250-12-X Pan-Lug™ Copper 1 Hole Straight Tongue Compression Lug

Manufacturer: PANDUIT | Catalog # LCAF250-12-X | Codale Part # 4437915
$4,080.54/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
One-hole, flared barrel, 250 kcmil cable, 1/2 stud hole.

Technical Information

Angle
Straight
Barrel Length
1.65 in
Barrel Type
Standard Barrel Length With Inspection Window
Cable Size
AWG
Material
Copper
Number of Holes
1 Hole
Size
250 kcmil Class K and M, 262.6 kcmil DLO
Stud Size
0.5 in
Tongue Thickness
0.17 in
Tongue Type
Standard
Tongue Width
1.28 in
Type
Preterminated Copper Trunk, Category 6
Voltage
35,000 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983557974
Color
White
Product UPC
07498355797
UNSPSC
39121405
Weight
2.0800 lb

Dimensions

Overall Length
3.3 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13, NEBS Level 3, ABS
