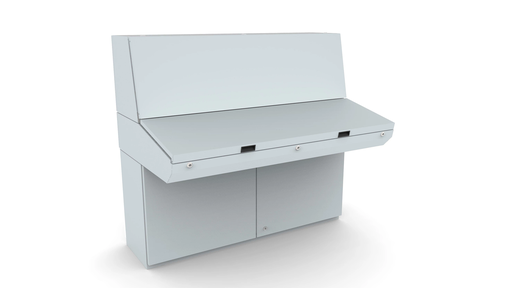

Hoffman MPC103R5 Base Console, 700x1000x500, Combiable Enclosure, Mild Steel

Manufacturer: nVent Hoffman | Catalog # MPC103R5 | Codale Part # 4439663
$2,519.35/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Console system MPC is IP 55/56 protected. It includes three interchangeable sections, top, desk and bottom This Console System, MPC, MPC103R5 item measures 700x1000x500mm has a material of Mild Steel color Light Gray, finish Powder Coated.

Technical Information

Color Coding
RAL 7035
Material
Steel
Style
Base Console With Mounting Plate

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510510541
Color
Gray
Finish
Powder Coated
Product UPC
78351051054
Weight
127.9 lb

Dimensions

Depth
19.69 Inch
Height
27.56 Inch
Length
27.93 Inch
Thickness
0.06 in
Width
39.37 in
Features
  • Material: Body and door: 1.5 mm mild steel. Rear panel: 1.5 mm mild steel. Bottom plates: 1.2 mm galvanized steel. Mounting plate: 2.5 mm galvanized steel.
  • Body: Folded and seam welded. Console construction includes a base that provides a distance between the floor and the lower part of the door/s, acting as an integrated plinth.
  • Doors and panels: Single folded surface mounted with hinges, allowing left and right-hand opening to base door. Top section and desk panels held open by self engage/self release mechanical panel stays. Concealed hinges, allowing 90° opening on the desk. Double door on 1200 and 1600 mm wide base units.
  • Mounting plate: Standard mounting plate in base unit. Fixed by fixing brackets on C rail, top and bottom, for depth adjustment. Optional in desk and top section units.
  • Lock: Double-bit 3 mm locks for top section and desk unit. For base, two double-bit 3 mm locks. Other options available. See wall mounting section.
  • Cable access: Bottom opening in base unit for cable access. Bottom plates for cable glanding supplied as standard.
  • Earthing: M8 threaded studs on bodies, doors and rear panels.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Single door: IP 66, TYPE 4, 12, 13, IK 10. Double door: IP 55, TYPE 12, 13, IK 10.
  • Delivery: The base unit is provided with a mounting plate as standard. Desk and top section units have mounting plates provided as accessories. All top and base openings can be closed by choosing the appropriate accessory plate. Suitable nuts and washers for the various earthing studs are provided.
  • Mounting plate: Standard mounting plate in base unit; fixed by fixing brackets on C rail, top and bottom, for depth adjustment; optional in desk and top section unit
