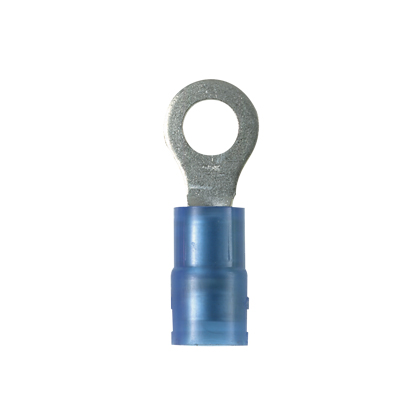

Panduit PNF14-14R-C 16 to 14 AWG Blue Nylon Insulated Ring Terminal

Manufacturer: Panduit | Catalog # PNF14-14R-C | Codale Part # 4441585
$289.49/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
Ring Terminal, 16 – 14 AWG, 1/4" stud size, funnel entry, nylon insulated, standard package.

Technical Information

Barrel Length
0.53 in
Barrel Type
Grip Sleeve
Conductor Size
16-14 AWG
Enclosure
Ring shape
Material
Nylon
Max Operating Temperature
105 degrees C
Min Operating Temperature
105 degrees C
Size
1/4"
Stud Size
1/4 in
Tc Connection
Funnel Entry
Temperature Rating
221 degrees F
Tongue Thickness
0.32 in
Tongue Width
0.46 in
Type
Insulated
Voltage
600 Volt
Wire Size
14 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983513284
Color
Blue
Finish
Tin Plated
Product UPC
07498351328
UNSPSC
39121409
Weight
3.3500 lb

Dimensions

Length
1.06 Inch
Overall Length
1.06 in
Width
0.46 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-154)
