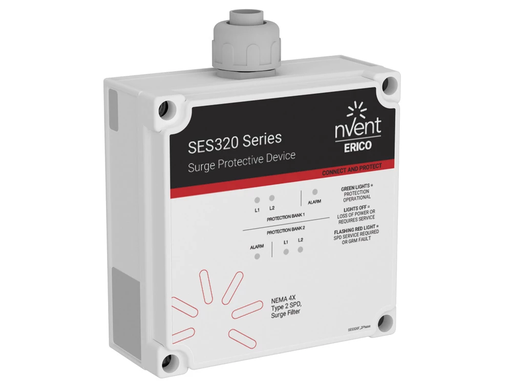

Image thumbnail 1

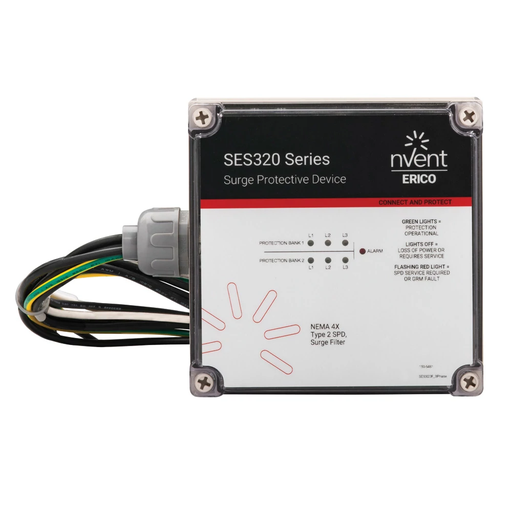

Image thumbnail 2

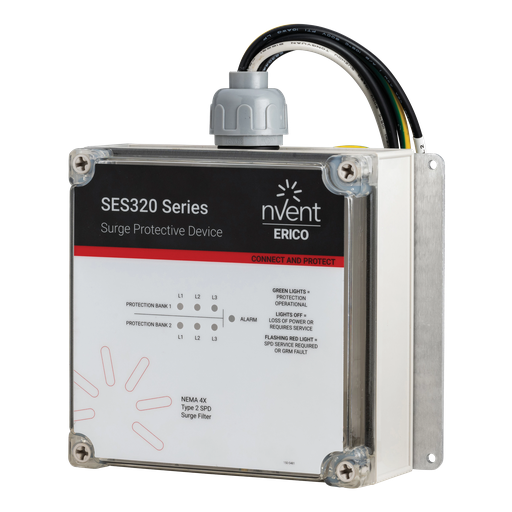

Image thumbnail 3

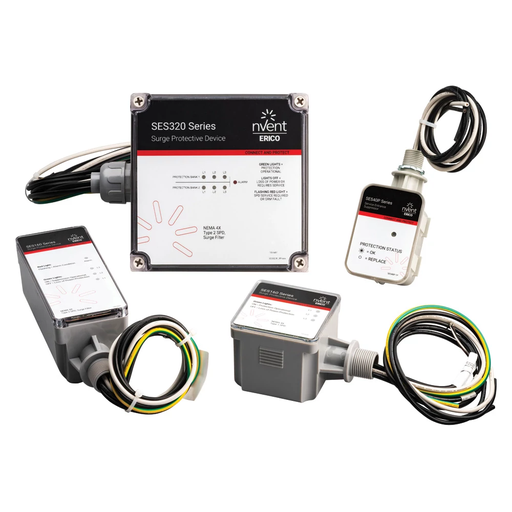

Image thumbnail 4

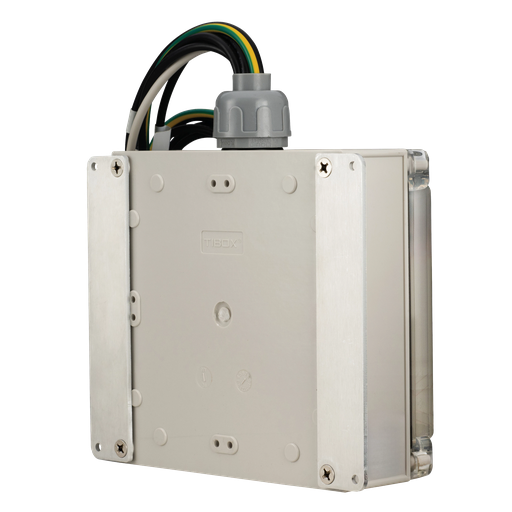

Image thumbnail 5
Image thumbnail 6
Email

nVent EFS SES320F480Y SES(F), 320 k

Manufacturer: nVent Hoffman | Catalog # SES320F480Y | Codale Part # 4442845
$2,542.27/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Economical primary surge protection with surge filter suitable for point-of-entry facility protection. 320 kA, 277/480 V Un, 3Ph Y 4W+G.

Technical Information

Applications
Lightning Protection; Power Connections
Enclosure Material
Polycarbonate
Enclosure Rating
NEMA®-4X
Type
Service Entrance Suppressors

Manufacturer Information

Brand
nVent Erico

General Product Info

12-Digit UPC
784805056300
Product UPC
78480505630
Weight
1.32 kg

Dimensions

Depth
2.99-2.99 Inch
Height
6.89-6.89 Inch
Width
8.38-8.38 in
Certifications
  • UL ANSI/UL 1449
  • cUL CSA C22.2 No. 269.1/269.2
  • cUL CSA C22.2 No. 8
  • UL ANSI/UL 1283
Features
  • Compact design can be directly mounted to panel or installed in a small space
  • Front-facing design eases installation and performance monitoring
  • 320 kA 8/20 ?s maximum surge rating per phase
  • Up to 60 dB attenuation (10 kHz to 100 MHz)
  • Ground reference monitoring triggers an alarm when N-PE mode exceeds 20 volts
  • Optional Flush Mounting Plate
  • 10-year limited warranty
