HCI HBL15W48 CONN, W/TIGHT, 6-20R,

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL15W48 | Codale Part # 4446451
$72.07/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

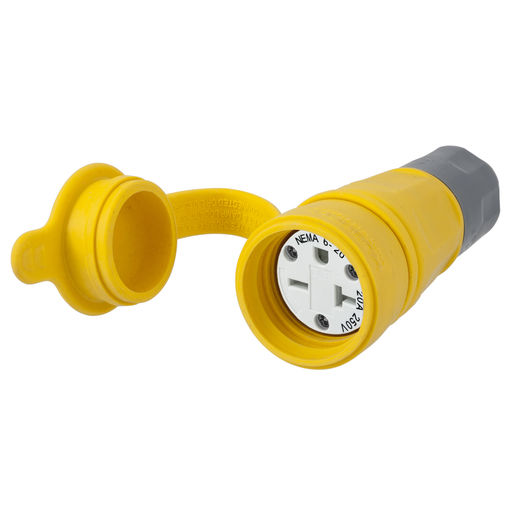

Straight Blade Devices, Female ConnectorBody, Elasto-Grip Water Tight, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, Yellow, Single Pack

Technical Information

Amperage
20 Amp
Applications
For Industrial, Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
14-12 AWG
Contact Material
Nickel-Plated Brass
Current
20 Amp
Grounding
Grounding
Material
Composite/Elastomeric
Mounting Type
Cord
NEMA
6-20R
Number of Conductors
3-Wire Grounding
Number of Poles
2 Pole
Number of Wires
2 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size
Standard Sized Product
Tc Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees F
Type
Elasto-Grip
Voltage
250 Volt
Wire Count
3

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585131290
Color
Yellow
Product UPC
78358513129
Weight
0.2000 lb

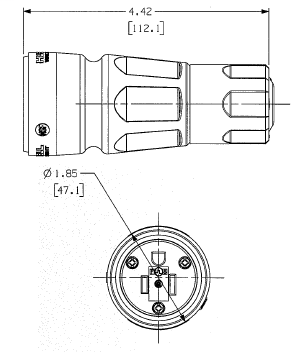

Dimensions

Height
1.8 Inch
Length
11 Inch
Width
8.0 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth body design minimizes collection points simplifying thewash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
