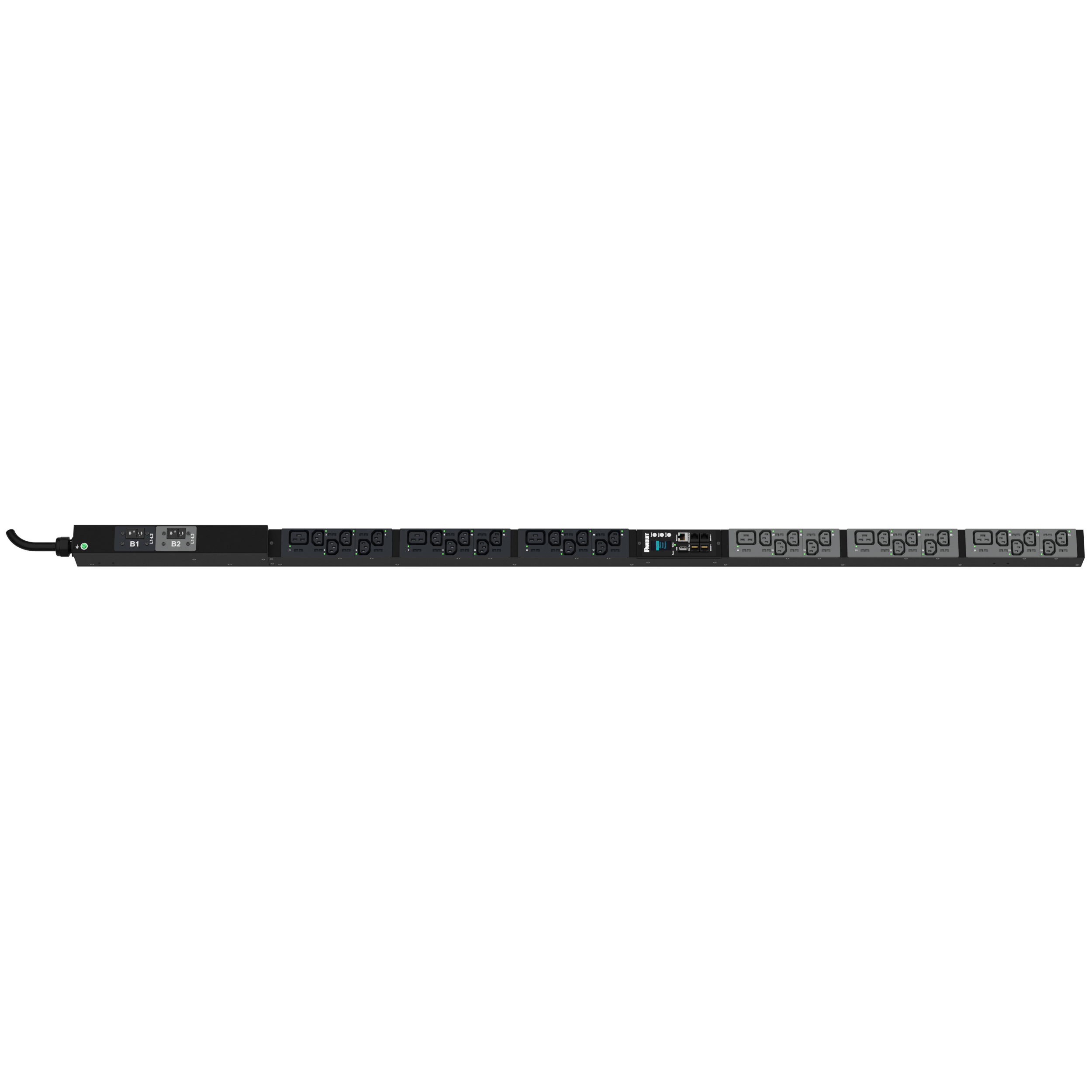

Product image for PAN P36G18M MSPO PDU, 30AMP, 230 V,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

PAN P36G18M MSPO PDU, 30AMP, 230 V,

Manufacturer: Panduit | Catalog # P36G18M | Codale Part # 4446476
$7,455.61/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual

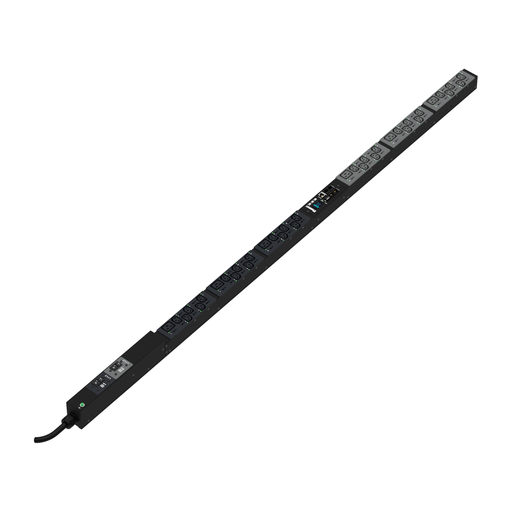

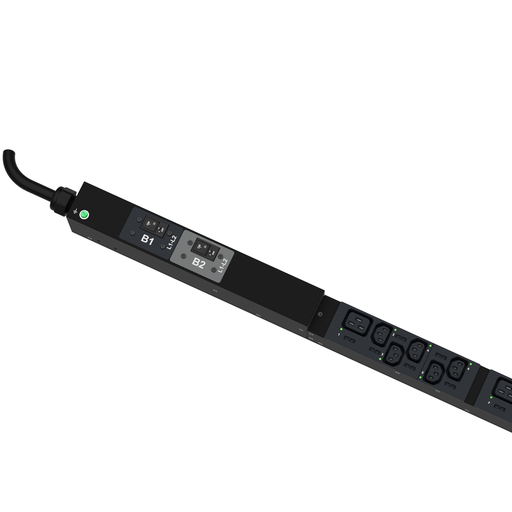

The SmartZone™ G5 Monitored & Switched per Outlet PDU features (30) C13 and (6) C19 outlets. It is a 30 amp, 208 V, single phase PDU with a NEMA L6-30P input plug and a 10 foot (3m) power cord. The PDU is black.

Technical Information

Amperage
30 Amp
Material
Metal
Max Operating Temperature
140 degrees F
Min Operating Temperature
10 degrees C
Standard
UL
Type
PDU
Wattage
5000 Watt

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
G5

General Product Info

12-Digit UPC
613056317369
Color
Black
Product UPC
61305631736
Weight
21.8000 lb

Dimensions

Cable Length
10 ft
Depth
2.1 Inch
Height
69 Inch
Width
52 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
India
Standards and Certifications
  • Standards Met: UL Listed File number: E218078
