HCI HBL2311EBK LKG.PLUG, 20A/125V,

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2311EBK | Codale Part # 4447249
$78.42/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 125V, 2-Pole 3-Wire Grounding, NEMA L5-20P, Screw Terminal, Black Nylon, Cord clamps with removable inserts.

Technical Information

Amperage
20 Amp
Applications
Power Connection
Conductor Size
14-10 AWG
Cord Type
Portable
Current
20 Amp
Horsepower
1 hp
Material
Nylon
Mounting Type
Cord
NEMA
L5-20P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size

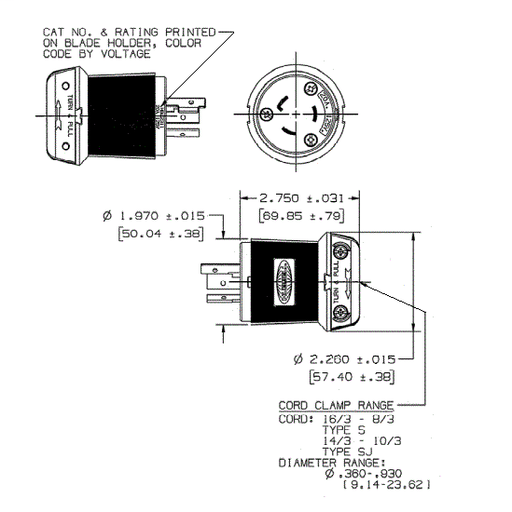

2.26 in x 2.26 in x 2.75 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Terminal Screws
Type
Standard Sized
Voltage
125 Volt
Wattage
2000 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585040905
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358504090
Weight
0.35 lb

Dimensions

Height
2-3/4 Inch
Length
2.26 Inch
Width
2.26 in

Certifications and Compliance

Country of Origin
USA
Features
  • All black ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain. Removable inserts for large diameter cable.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Entertainment Industry Version
