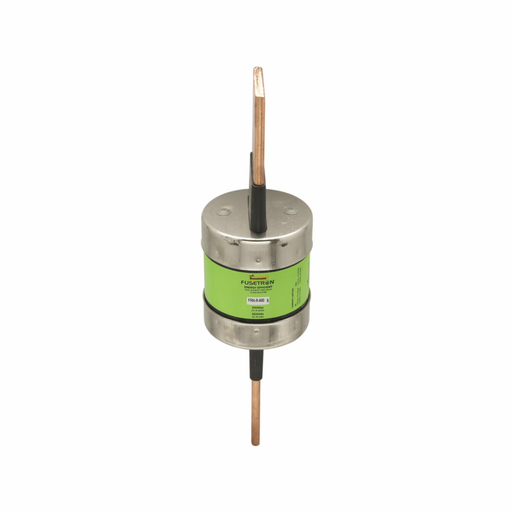

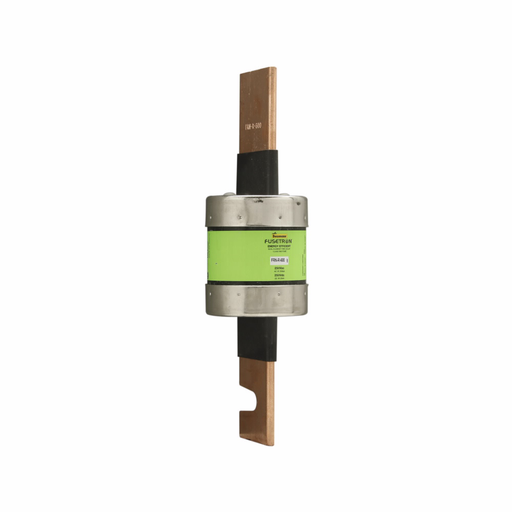

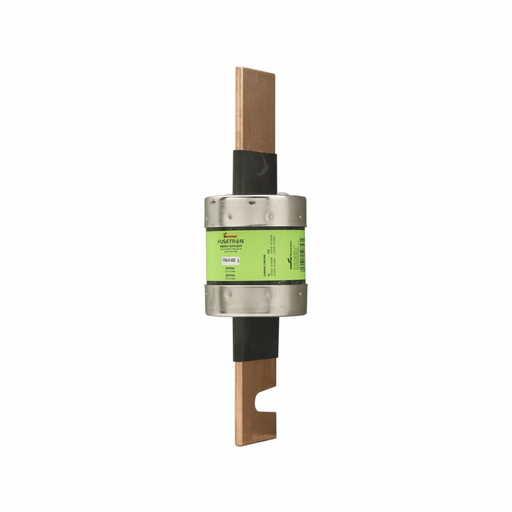

Bussmann FRN-R-600 600amp Fusetron™ Dual-Element Time-Delay Fuse, Class RK5, 250Vac/250Vdc

Manufacturer: Eaton Bussmann | Catalog # FRN-R-600 | Codale Part # 44481
$307.63/ea
ea
Log in or register to view your price, purchase history, and more!
9 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 600 A, non-indicating fuse, interrupting rating of 200 kA at 250 Vac and 20 kA at 250 Vdc

Technical Information

Amperage
600 Amp
Applications
Combination Starters, Motor Control Centers, Machinery Disconnects, Power Panelboards
Connection Type
Blade
End Type
Blade
Response Time
10 S at 500%
Size
2.88 In Diameter X 10.38 In Length
Tc Connection
Blade end x blade end
Type
Current Limiting,Time Delay
Voltage
125 Volt

Manufacturer Information

Brand
Bussmann
Sub Brand
Fusetron

General Product Info

12-Digit UPC
051712507561
Class
RK-5
Product UPC
05171250756
Weight
.11 lb

Dimensions

Diameter
2.88 Inch
Height
0.81 Inch
Length
3 Inch
Width
2.59 in
