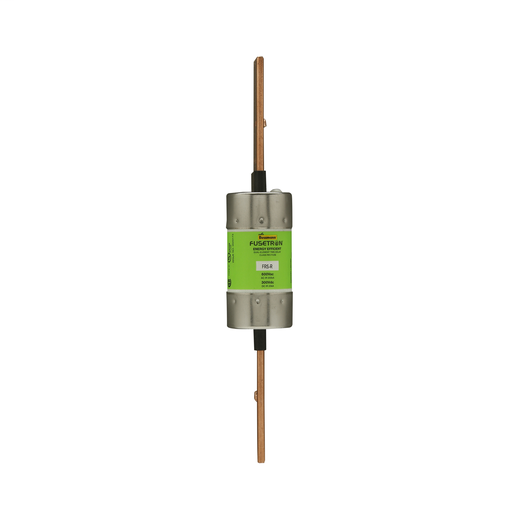

Bussmann FRS-R-110 110amp Fusetron™ Dual-Element Time-Delay Fuse, Class RK5, 600Vac/300Vdc

Manufacturer: Eaton Bussmann | Catalog # FRS-R-110 | Codale Part # 44489
$203.41/ea
ea
Log in or register to view your price, purchase history, and more!
6 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 110 A, non-indicating fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc

Technical Information

Amperage
110 Amp
Applications
Combination Starters, Motor Control Centers, Machinery Disconnects, Power Panelboards
Connection Type
Blade
Element
Dual
End Type
Blade
Interrupt Rating
20, 200 kAIC
Response Time
10m s
Size
1.61 In Diameter X 9.63 In Length
Standard
CSA,E2186,UL
Tc Connection
Rod To Blade
Type
Time-Delay
Voltage
300 Volt

Manufacturer Information

Brand
Bussmann
Sub Brand
Fusetron

General Product Info

12-Digit UPC
051712508445
Class
RK-5
Product UPC
05171250844
Weight
.15 lb

Dimensions

Diameter
1.61 in
Height
0.81 Inch
Length
5 Inch
Width
1.61 in
