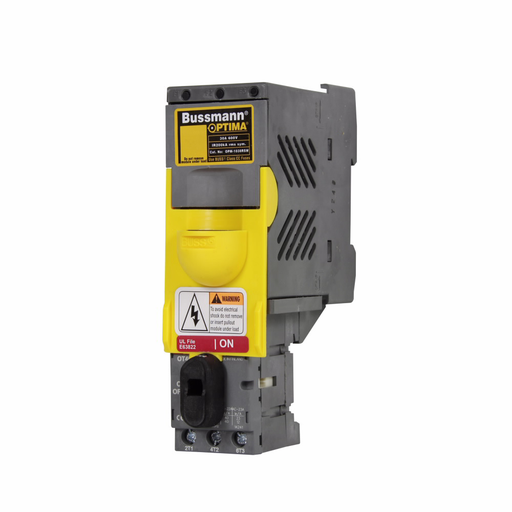

Bussmann Series OPM-1038SW 30 Amp 600 VAC/VDC Non-Rejection Fuse Holder and Disconnect Switch

Manufacturer: Eaton Bussmann | Catalog # OPM-1038SW | Codale Part # 444898
$342.57/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Eaton Bussmann series Optima fuse holders, 30 A (UL/CSA), 32 A (IEC), Three-pole, 100 kA, #10-18 AWG solid, #8-18 AWG stranded, 100 kAIC, Thermoplastic, 600 V (UL/CSA), 660 V (IEC)

Technical Information

Amperage
30 Amp
Applications
Industrial Control, Process Control Systems, Automated Warehouse Systems, Individual Control Circuits
Connection Type
#8-18 AWG Stranded
Interrupt Rating
100 kAIC
Material
Thermoplastic
Mounting Type
35 Mm DIN Rail Or #8 Screw
Number of Poles
3
Size
1.76 In Width X 3.74 In Depth X 5.72 In Height
Standard
CSA C22.2,IEC,UL 508
Type
Fuse Holders
Voltage
600 Volt

Manufacturer Information

Brand
Bussmann
Sub Brand
Optima

General Product Info

12-Digit UPC
051712797214
Color
Gray
Product UPC
05171279721
Weight
.8 lb

Dimensions

Height
5.72 Inch
Length
1.76 Inch
