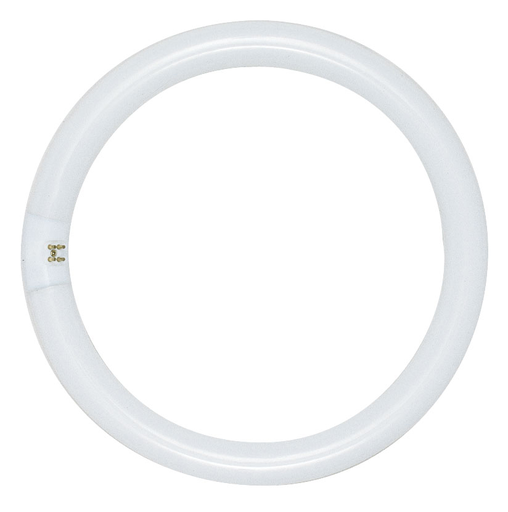

Satco S6500 22 Watt; T9; Circline Fluorescent; 4100K Cool White; 62 CRI; 4-Pin base

Manufacturer: SATCO Lighting | Catalog # S6500 | Codale Part # 4451396
*Call For Price*
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet MDM Safety Data Sheet
22 watt; T9; Circline Fluorescent; 4100K Cool White; 62 CRI; 4-Pin base

Technical Information

Average Rated Life
12000 hr
Base
4-Pin
Beam Spread
360
Bulb Shape
T9
Color Accuracy
62
Color Rendering Index
62
Color Temperature
Cool White
Correlated Color Temp
4100 K
Dimmable?
No
Lens Color
Frost
Lumens
1,120 Lumen
Technology Type
Fluorescent
Type
Circline
Wattage
22 Watt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
HyGrade

General Product Info

12-Digit UPC
045923065002
Color
White
Finish
Frosted
Housing Color
None
Product UPC
04592306500
Weight
0.42 lb

Dimensions

Diameter
8 Inch
Length
8 Inch

Certifications and Compliance

Country of Origin
China

Certifications & Compliance

Prop 65 Warning
Lead
Features
  • 360-degree beam spread
  • Operating temerature: Ballast dependent
  • Rated for use in enclosed fixtures
  • Dry location rated
  • Luminous efficacy: 50.91 lm/w
  • Non-Dimmable
Installation Notes
  • Outer Diameter is 8 inches
Prop 65
  • Lead
