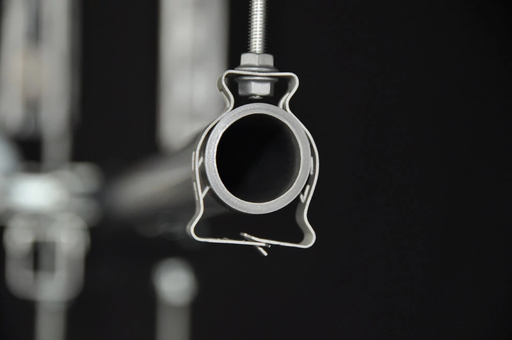

Caddy 812M Snap Close Conduit/Pipe Clamp, Spring Steel, 1/2", 3/4" EMT, 1/2", 3/4" Rigid/Pipe, 9/32" Hole, Plain

Manufacturer: Caddy Fasteners | Catalog # 812M | Codale Part # 4451547
$192.56/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Easy to install, snap to close conduit support that provides stabilitiy and secureness. Provides the proper spacing to facilitate electrical box alignment, thus eliminating additional steps during installation. 1/2-3/4" EMT/Rigid, 18 to 30 mm cable or plastic conduit.

Technical Information

Applications
Datacom and Low-Voltage, Electrical
Material
Steel
Standard
CULus®
Trade Size
1/2 - 3/4 Inch
Type
Snap Close

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856702108
Finish
NVent CADDY Armour
Product UPC
78285670210
Weight
0.02 kg
Certifications
  • cUL CAN/CSA C22.2 No. 18.4-04
  • UL ANSI/UL 2239
Features
  • May be used for either vertical or horizontal installations
  • Eliminates need for offset bending conduit
  • Finger closure, no tools required
  • Locking design has greater resistance to twisting loads and is stronger than any on the market
  • Low profile locking tabs and smooth gripping dimples remove the possibility of scrapes
  • 812M and 16M feature double tabs to center conduit, increase range and holding power and prevent conduit from sliding
