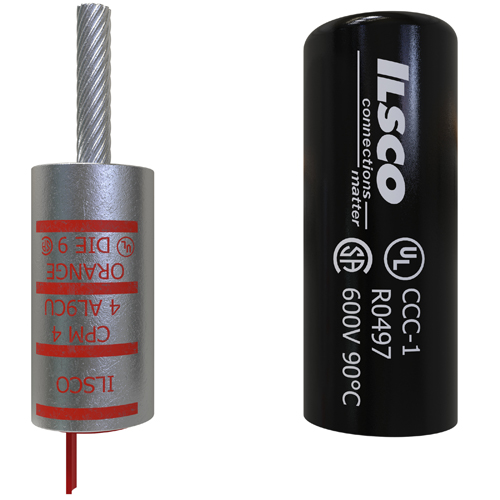

Product image for Ilsco CPM-4 Copper Compression Pigtail Adaptor, Conductor Size 4, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco CPM-4 Copper Compression Pigtail Adaptor, Conductor Size 4, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CPM-4 | Codale Part # 4451582
$24.50/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Copper Pigtail Adaptor, Compression connection, Dual Rated, Copper material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 4 Str, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Orange, primary color Silver, die index 9,

Technical Information

Applications
Copper Pigtail Adaptor
Barrel Length
1.344 in
Barrel Type
Standard
Color Coding
Orange
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Compression
Material
Copper
Number of Conductors
1
Size
L:2.875;W:0.82;H:0.82 IN
Temperature Rating
90 degrees C
Type
CPM:AL/CU PIN
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669008425
Color
Silver
Product UPC
78366900842
Weight
0.041 lb

Dimensions

Height
0.82 Inch
Inside Diameter
0.247 in
Length
2-7/8 Inch
Outside Diameter
0.65 in
Width
0.82 in
