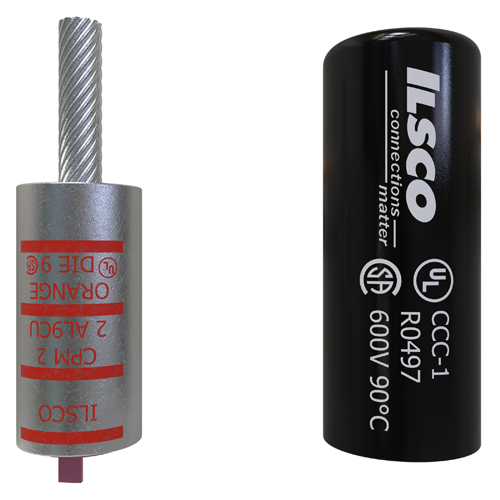

Ilsco CPM-2 Copper Compression Pigtail Adaptor, Conductor Size 2, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CPM-2 | Codale Part # 4451583
$25.61/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Copper Pigtail Adaptor, Compression connection, Dual Rated, Copper material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 2 Str, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Orange, primary color Silver, die index 9,

Technical Information

Applications
Terminating Connector
Barrel Length
1.344 in
Barrel Type
Standard
Color Coding
Orange
Conductor Material
Aluminum,Copper
Conductor Size
2 AWG
Conductor Type
Stranded
Connection Type
Compression
Contact Material
Aluminum/Copper
Material
Copper
Number of Conductors
1
Size
L:2.875;W:0.82;H:0.82 IN
Temperature Rating
90 degrees C
Type
Straight
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669008449
Color
Silver
Product UPC
78366900844
Weight
0.04 lb

Dimensions

Height
0.82 Inch
Inside Diameter
0.31 in
Length
2-7/8 Inch
Outside Diameter
0.65 in
Width
0.82 in
