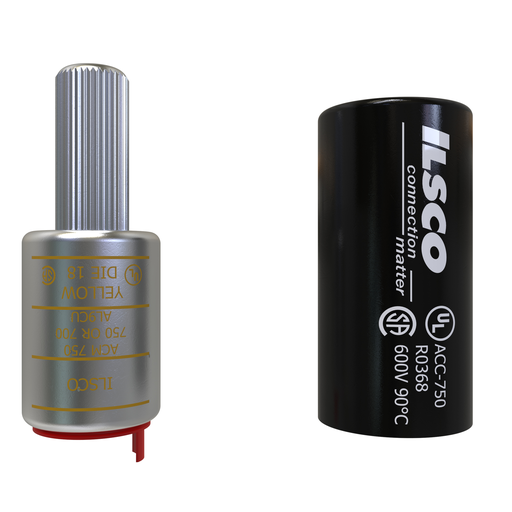

Ilsco ACM-750 Aluminum Compression Pigtail Adaptor, Conductor Size 750, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ACM-750 | Codale Part # 4451585
$90.41/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Aluminum Pigtail Adaptor, Compression connection, Dual Rated, Aluminum material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 750 kcmil, 700 kcmil, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Yellow, primary color Silver, die index 18,

Technical Information

Applications
Terminating Connector
Barrel Length
2.03 in
Barrel Type
Standard
Color Coding
Yellow
Conductor Material
Aluminum,Copper
Conductor Size
700-750 kcmil
Conductor Type
Stranded
Connection Type
Compression
Contact Material
Aluminum
Material
Aluminum
Number of Conductors
1
Pin Length
1.760 in
Size
L:5.005;W:1.64;H:1.64 IN
Standard
UL Specifications: UL 486A-B,CSA File Number: LR-29601,UL File Number: E62525
Temperature Rating
90 degrees C
Type
Long, Round
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669009286
Color
Yellow
Product UPC
78366900928
Weight
0.393 lb

Dimensions

Height
1.64 Inch
Inside Diameter
1.03 in
Length
5.005 Inch
Outside Diameter
1.46 in
Width
1.64 in
