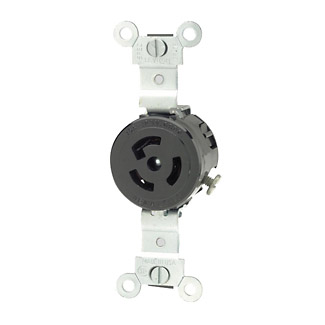

Leviton 4710 125 Volt 15 Amp 2-Pole 3-Wire NEMA L5-15R 1/2 Hp Black Nylon Grounding Flush Mount Locking Receptacle

Manufacturer: Leviton | Catalog # 4710 | Codale Part # 4451666
$49.19/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet
15 Amp, 125 Volt, NEMA L5-15R, 2P, 3W, Single Locking Receptacle, Industrial Grade, Grounding - BLACK

Technical Information

Amperage
15 Amp
Applications
For Commercial Use
Body Material
Nylon
Conductor Size
18-10 AWG
Connection Type
Side Wired
Contact Material
Brass
Device Type
Locking Receptacle
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
Horsepower
1/2 hp
Material
Nylon
Mounting Type
Box, Recessed/Flush
NEMA
WD-6
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass,Brass
Screw Size
10-32,8-32
Size
46 H IN
Standard
ANSI C-73
Tc Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
18-10 AWG
Termination Type
Side Wire
Type
#1CD
Voltage
125 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Locking Devices

General Product Info

12-Digit UPC
078477796986
Color
Black
Environment
Dry
Environmental Conditions
Flammability (Rated V-2 Per UL94)
Product UPC
07847779698
Weight
0.1800 lb

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Features
  • Levitons Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
  • Ideal for motor loads, such as shop vacs and pool pumps, and generators

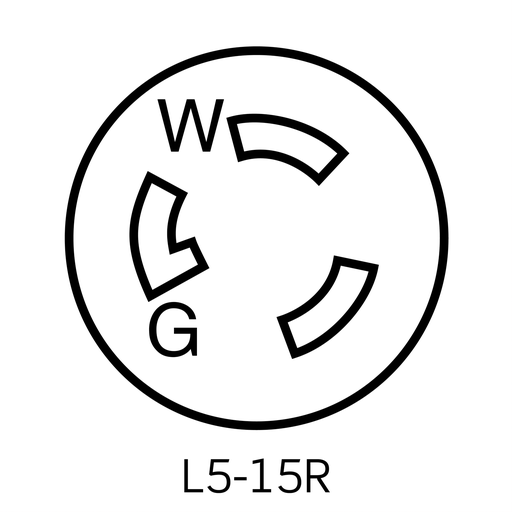

NEMA
  • L5-15R
