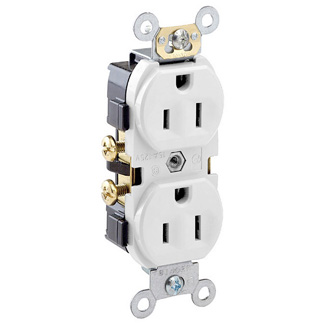

Leviton CR15-W 15A 125v Commercial Grade Duplex Receptacle, Side-Wired - White

Manufacturer: Leviton | Catalog # CR15-W | Codale Part # 4451672
$3.45/ea
ea
Log in or register to view your price, purchase history, and more!
301 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
Leviton.s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty (in Aaccordance with VDE)
Body Material
Nylon
Conductor Size
14-10 AWG
Connection Type
Side Wire
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
Nylon
Grade
Commercial
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Mounting Type
Screw, Wall Box, Flush
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
46 H x 1.56 W x 1.245 D IN
Standard
ANSI C-73
Tc Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Termination Type
Side Wire
Type
2-Outlet, 1-Unit
Voltage
125 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Commercial Receptacles

General Product Info

12-Digit UPC
078477815205
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Product UPC
07847781520
Weight
0.1600 lb

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
USA
NEMA
  • 5-15R
Color Variations
  • Brown
Features
  • Levitons line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
