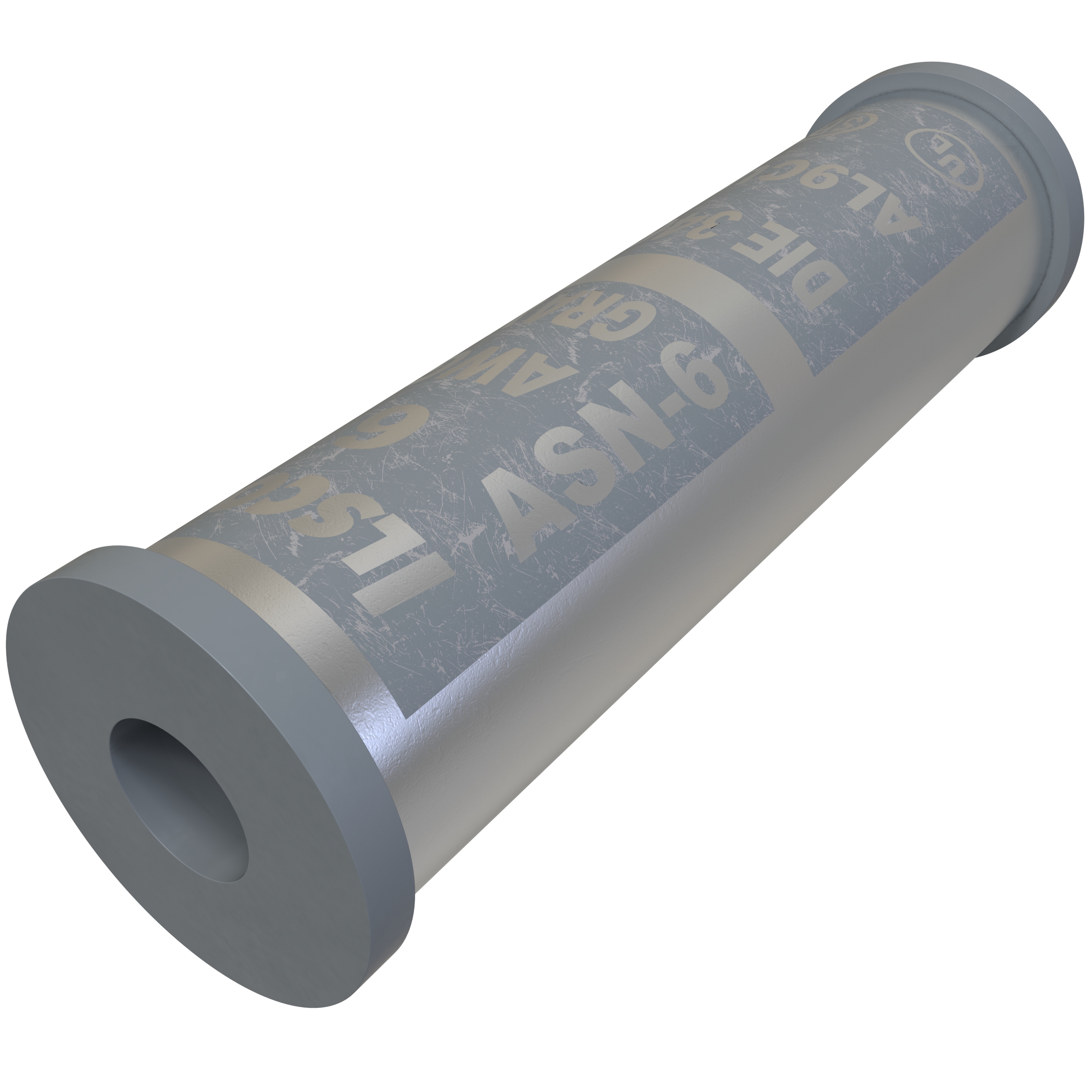

Ilsco ASN-6 SureCrimp® Aluminum Compression Sleeve, Conductor Size 6, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ASN-6 | Codale Part # 4453352
$9.18/ea
ea
Log in or register to view your price, purchase history, and more!
15 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Surecrimp Aluminum Compression Sleeve, Compression connection, Dual Rated, Aluminum material, Tin plated connector, Standard Barrel, UL, CSA, Copper/Aluminum Primary Conductor 6 Str, Contains De-Ox®, 1 conductors, Dimensions 1.205 in x 0.338 in x 0.338 in, rated for 35 kV, die color code Gray, primary color(s) Silver,

Technical Information

Applications
Use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques must be used
Barrel Type
Standard
Conductor Material
Aluminum,Copper
Conductor Size
6 AWG
Conductor Type
Aluminum and Copper
Connection Type
Compression
Die Code
346
Material
Aluminum
Number of Conductors
1
Size
L:1.204;W:0.338;H:0.338 IN
Tc Connection
Compression
Temperature Rating
90 degrees C
Type
Dual Rated, Chamfered Barrel
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669184723
Color
Gray
Finish
Electro-Tin Plated
Product UPC
78366918472
Weight
0.007 lb

Dimensions

Height
0.338 Inch
Inside Diameter
0.194 in
Length
1-1/4 Inch
Outside Diameter
0.338 in
Width
0.338 in
