LEV GFNT2-HGI IV HG ST NON TR GFCI

Manufacturer: Leviton | Catalog # GFNT2-HGI | Codale Part # 4453507
$61.20/ea
ea
Log in or register to view your price, purchase history, and more!
21 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet

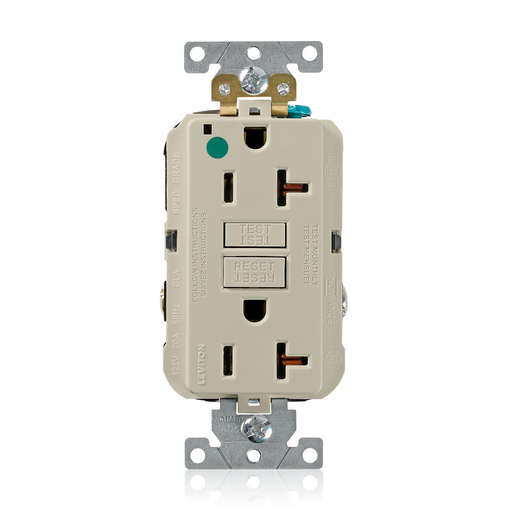

SmartlockPro Self-Test GFCI Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Wallplate Included, Power Indication, 20 Amp, 125 Volt, Back and Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Ivory

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty, Hospitals
Body Material
Polycarbonate
Device Type
Duplex Receptacle Outlet
Enclosure
WD-6
Face Material
PBT
Flamability Class
Rated V-0 Per UL 94
Grade
Hospital
Grounding
Self-Grounding
Horsepower
1 hp
Material
Polycarbonate
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
66 degrees C
Short Circuit Current
10 kA
Standard
ANSI C-73,CSA C22.2 No. 42 & 144,FedSpec W-C-596,UL 498,UL 943
Temperature Rating
-35 degrees C to 66 degrees C
Termination Type
Back Wire,Side Wire
Type
Self-Test, Slim, Extra Heavy Duty
Voltage
125 Volt
Wire Count
3

Manufacturer Information

Brand
Leviton
Sub Brand
Smart-Lock Pro

General Product Info

12-Digit UPC
078477725085
Color
Ivory
Product UPC
07847772508
Weight
0.4200 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Certifications
CSA,NOM-ANCE,UL
Country of Origin
China
Patents
  • CA2730014
  • CA2865659
  • MX302458
  • MX308495
  • MX344697
  • US10483066
  • US11456138
  • US7697252
  • US8587914
  • US8599522
  • US8944859
  • US9053886
  • US9077091
  • US9276393
Color Variations
  • Brown
NEMA
  • 5-20R
