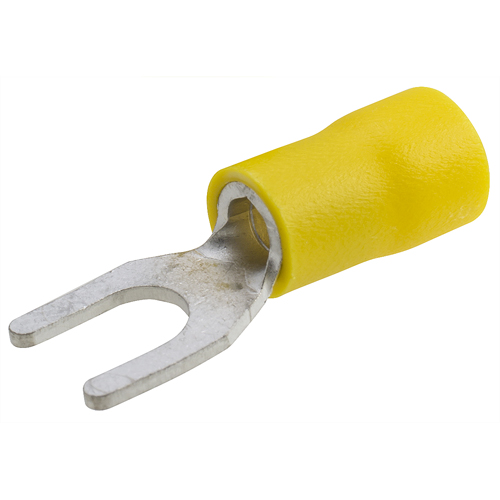

Image thumbnail 2
Email

Ilsco VSBR-10-10-P25 ILSCON Spade Terminal, Conductor Range 10-12, #10 Bolt Size, Vinyl Insulated, Yellow Color Code, Pack of 25

Manufacturer: Ilsco | Catalog # VSBR-10-10-P25 | Codale Part # 4453659
$23.68/ea
ea
Log in or register to view your price, purchase history, and more!
18 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
ILSCON Spade Terminal, Compression connection, Copper material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size #10 in, UL, Copper Primary Conductor 10 Str - 12 Str and 10 Sol - 12 Sol, 1 conductors, Vinyl insulation, Dimensions 3.5 in x 1.21 in x 2.88 in, rated for 600 V, die color code Yellow, uses Die Set A for installation, primary color(s) Silver, tongue type Spade, die index A,

Technical Information

Applications
Spade Terminal
Barrel Type
Brazed
Cable Size
AL (Primary, run, main, line):NA
Conductor Size
12-10 AWG
Connection Type
Compression
Insulation Material
Vinyl
Material
Copper
Number of Holes
1 Hole
Size
L:3.5;W:1.21;H:2.88 IN
Standard
CSA,E2186,UL
Stud Size
#10
Tc Connection
Compression
Temperature Rating
75 degrees C
Type
Standard, Solderless, Non Disconnect, Compression
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCON

General Product Info

12-Digit UPC
783669216073
Color
Yellow
Construction Type
Brazed
Finish
Electro-Tin Plated
Product UPC
78366921607
Weight
0.176 lb

Dimensions

Height
2.88 Inch
Length
1.004 Inch
Width
0.354 in
