ILSCO VBST-10-P25 CU CMP 12-10 VYL

Manufacturer: Ilsco | Catalog # VBST-10-P25 | Codale Part # 4453666
$18.60/ea
ea
Log in or register to view your price, purchase history, and more!
13 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet

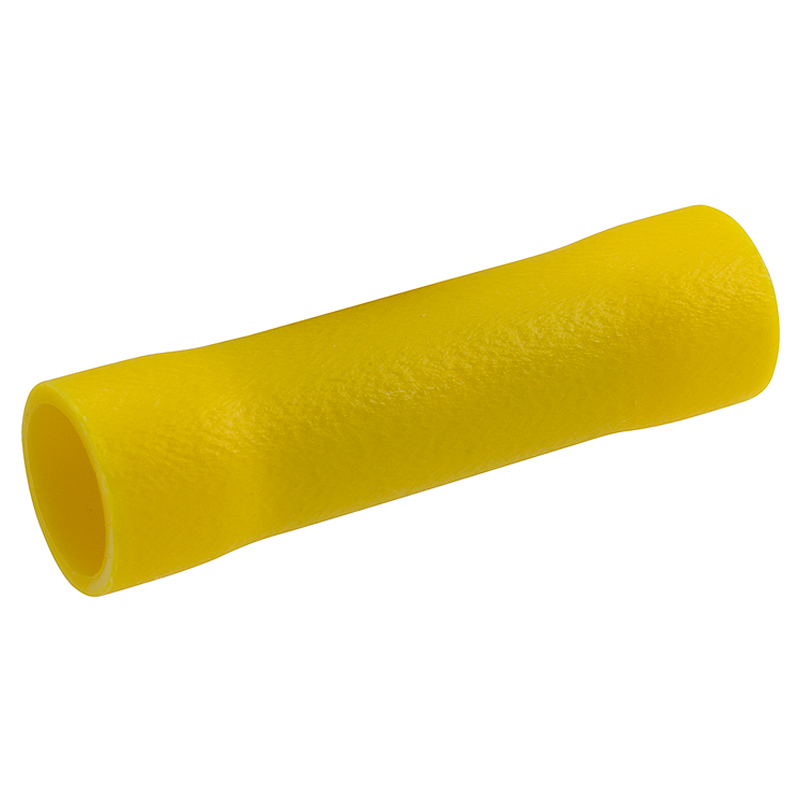

ILSCON Insulated Butt Splice, Compression connection, Copper material, Tin plated connector, UL, Copper Primary Conductor 10 Str - 12 Str and 10 Sol - 12 Sol, 1 conductors, Vinyl insulation, Dimensions 3.5 in x 1.21 in x 2.88 in, rated for 600 V, uses Die Set A for installation, primary color(s) Silver, Yellow, die index A,

Technical Information

Applications
Insulated Butt Splice
Cable Size
AL (Primary, run, main, line):NA
Conductor Material
Copper
Conductor Size
12-10 AWG
Connection Type
Compression
Material
Copper
Number of Conductors
1
Number of Holes
NA
Size
L:3.5;W:1.21;H:2.88 IN
Standard
CSA,E2186,UL
Tc Connection
Compression
Temperature Rating
75 degrees C
Type
Insulated, Butted
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCON

General Product Info

12-Digit UPC
783669213621
Color
Yellow
Construction Type
Butted
Product UPC
78366921362
Weight
0.210 lb

Dimensions

Height
2.88 Inch
Length
3-1/2 Inch
Overall Length
1.043 in
Width
1.21 in
