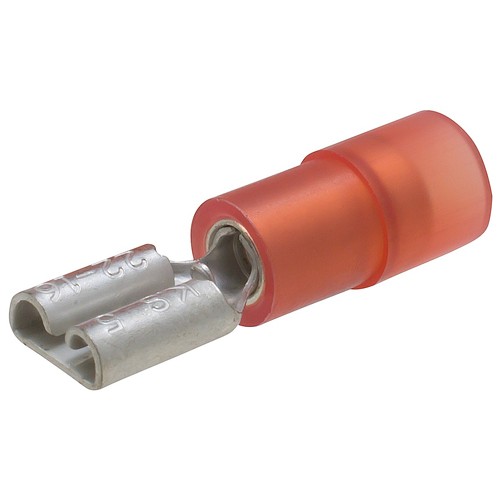

Product image for ILSCO VDFT-18-250-P50 CU CMP STD FE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

ILSCO VDFT-18-250-P50 CU CMP STD FE

Manufacturer: Ilsco | Catalog # VDFT-18-250-P50 | Codale Part # 4453671
$28.29/ea
ea
Log in or register to view your price, purchase history, and more!
17 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
ILSCON Disconnect Terminal, Compression connection, Brass material, Tin plated connector, UL/cUL 310 Listed, Copper Primary Conductor 18 Str - 22 Str and 18 Sol - 22 Sol, 1 conductors, Vinyl insulation, rated for 300 V, uses for installation, Female connection, primary color Silver, Red, tongue type Disconnect, die index C,

Technical Information

Applications
Disconnect Terminal
Barrel Type
Butted
Cable Size
AL (Primary, run, main, line):NA
Conductor Material
Copper
Conductor Size
22-18 AWG
Connection Type
Compression
Insulation Material
Vinyl
Material
Brass
Number of Conductors
1
Number of Holes
NA
Size
L:3.5;W:1.21;H:2.88 IN
Standard
CSA,E2186,UL
Tab Size
1/4 x 0.032 in
Tc Connection
Compression
Temperature Rating
75 degrees C
Type
Standard, Compression
Voltage
300 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCON

General Product Info

12-Digit UPC
783669214031
Color
Red
Construction Type
Butted
Finish
Electro-Tin Plated
Product UPC
78366921403
Weight
0.178 lb

Dimensions

Height
2.88 Inch
Length
0.87 Inch
Width
0.26 in
