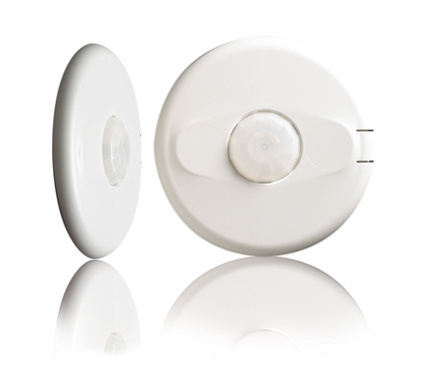

Wattstopper CI-355-1 120 to 347 VAC 500 Square Foot 360 Degrees Passive Infrared Line Voltage Ceiling Sensor

Manufacturer: Legrand WattStopper | Catalog # CI-355-1 | Codale Part # 4453730
$199.61/ea
ea
Log in or register to view your price, purchase history, and more!
12 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Wattstopper's CI-355 passive infrared (PIR) occupancy sensor automatically turns lighting on and off based on occupancy. The sensor mounts on the ceiling with a flat, low-profile appearance and provides 360 degrees of coverage.

Technical Information

Applications
For Office Spaces, Classrooms, Warehouses, Commercial
Indicator
True
Indoor Outdoor
Indoor
Input Voltage
120/230/277/347 VAC
Load Rating
800 W @ 120 VAC, 1200 W @ 230-347 VAC
Material
Plastic
Mounting Type
Ceiling
Sensor Type
Passive Infrared
Standard
CSA C22.2 No. 14,IEC 60947-3,UL 508
Type
Magnetic Low Voltage, Automatic On/Off
Voltage
100-347 VAC, 24 VDC

Manufacturer Information

Brand
WattStopper
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
754182914340
Environmental Conditions
120
Finish
Gloss
Product UPC
75418291434
Weight
0.4500 lb

Dimensions

Depth
1.02 Inch
Height
4-1/2 Inch
Length
4-1/2 Inch
Width
4.5 in

Certifications and Compliance

Country of Origin
China
Features
  • Built-in light level sensor featuring simple, one-step set-up
  • Zero-crossing for long relay life
  • LED indicates occupancy detection
  • DIP switch simplifies sensor adjustments
  • Clip mounting system makes ceiling tile installation simple
  • Detection Signature Processing eliminates false triggers and provides immunity to RFI and EMI
  • Walk-through mode turns lights off 3 minutes after the area is initially occupied ideal for brief visits such as mail delivery
