LEV WDR15 BR WR DEC+ DUPL REC 2P3W

Manufacturer: Leviton | Catalog # WDR15 | Codale Part # 4453875
$25.01/ea
ea
Log in or register to view your price, purchase history, and more!
40 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet

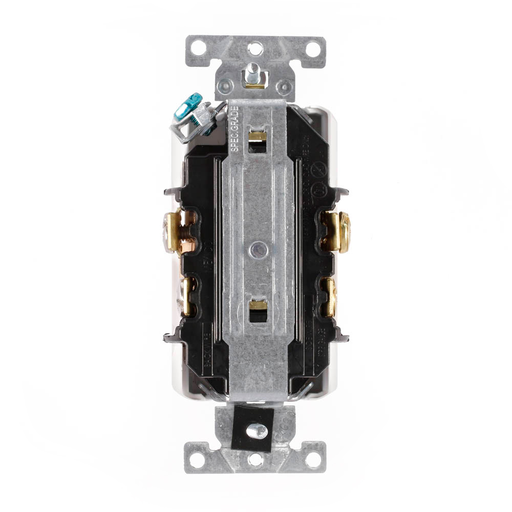

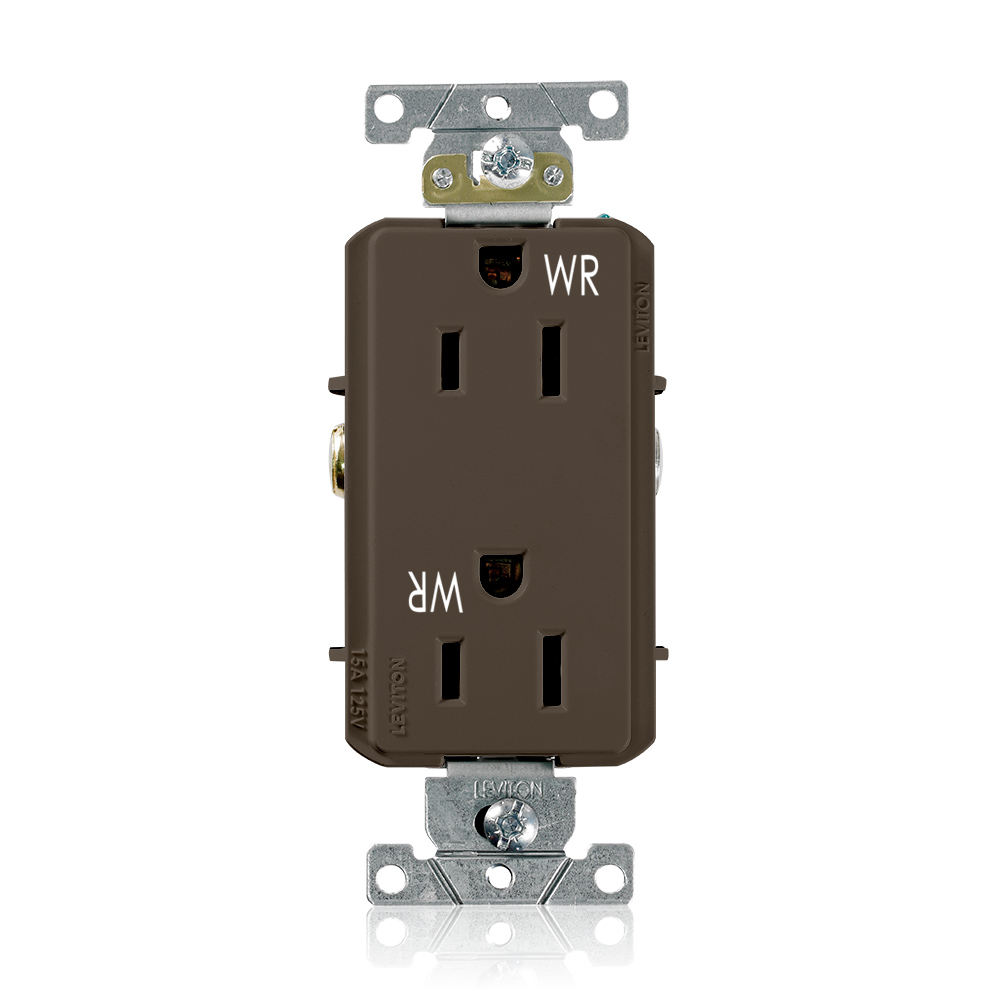

Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Weather-Resistant, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Brown

Technical Information

Amperage
15 Amp
Applications
Industrial
Body Material
PBT,PBT,Polyester Blend,Polyester Blend
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Face Material
PBT,PBT,Polyester Blend,Polyester Blend
Flamability Class
Rated V-0 Per UL 94,Rated V-0 Per UL 94
Grade
Heavy-Duty Industrial Specification
Grounding
Self-Grounding,Self-Grounding
Horsepower
1/2 hp
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
75 degrees C
Standard
C,US UL
Temperature Rise
200 %
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Type
Receptacle
Voltage
125 Volt
Wire Type
Stranded or Solid

Manufacturer Information

Brand
Leviton
Sub Brand
DECORA PLUS RECEPTACLES

General Product Info

12-Digit UPC
078477892398
Color
Brown,Brown
Product UPC
07847789239
Weight
0.2100 lb

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Color Variations
  • Black
Patents
  • MX321216
  • US8684771
