LEV WDR15-W WH WR DEC+ DUPL REC 2P3

Manufacturer: Leviton | Catalog # WDR15-W | Codale Part # 4453876
$25.01/ea
ea
Log in or register to view your price, purchase history, and more!
49 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet

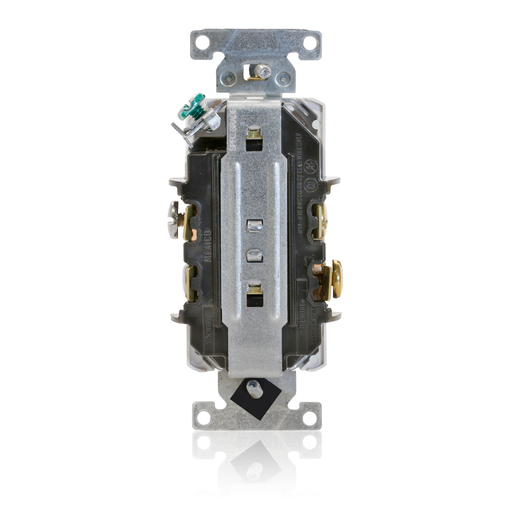

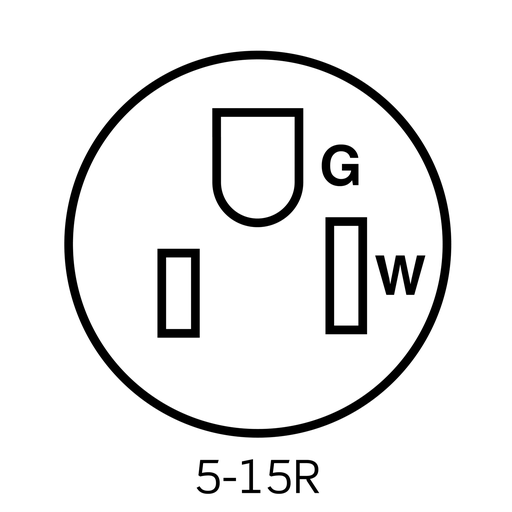

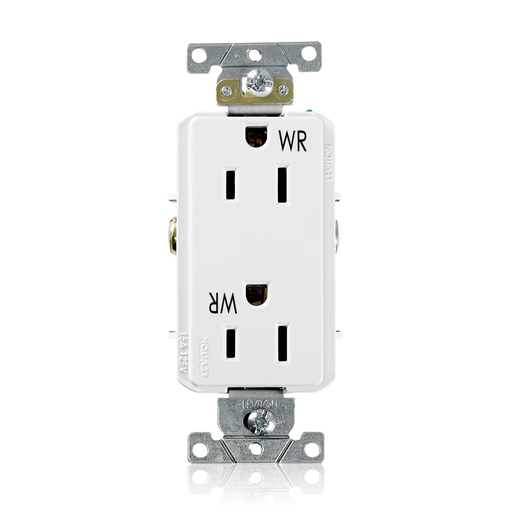

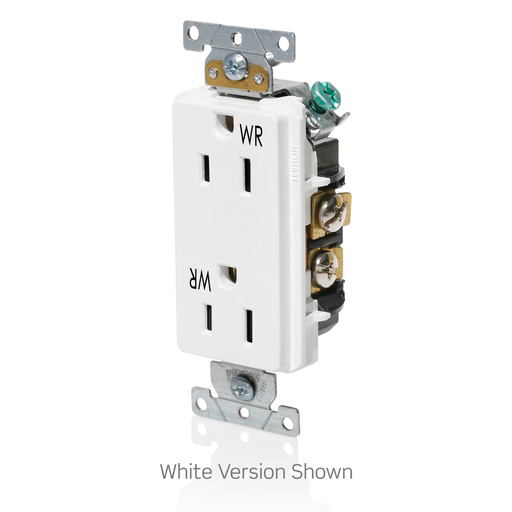

Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Weather-Resistant, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White

Technical Information

Amperage
15 Amp
Applications
Industrial
Body Material
PBT,PBT,Polyester Blend,Polyester Blend
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Face Material
PBT,PBT,Polyester Blend,Polyester Blend
Flamability Class
Rated V-0 Per UL 94,Rated V-0 Per UL 94
Grade
Heavy-Duty Industrial Specification
Grounding
Self-Grounding,Self-Grounding
Horsepower
1/2 hp
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Standard
ANSI C-73,ANSI C-73,CSA C22.2. No. 42,CSA C22.2. No. 42,Fed Spec W-C-596,Fed Spec W-C-596,UL 498,UL 498
Temperature Rise
200 %
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Type
Receptacle
Voltage
125 Volt
Wire Count
3,3
Wire Type
Stranded Building Wire,Stranded Building Wire

Manufacturer Information

Brand
Leviton
Sub Brand
DECORA PLUS RECEPTACLES

General Product Info

12-Digit UPC
078477892428
Color
White,White
Product UPC
07847789242
Weight
0.2100 lb

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Certifications
CULus,CULus,NOM-ANCE,NOM-ANCE
Country of Origin
Mexico
Patents
  • MX321216
  • US8684771
Color Variations
  • Brown
