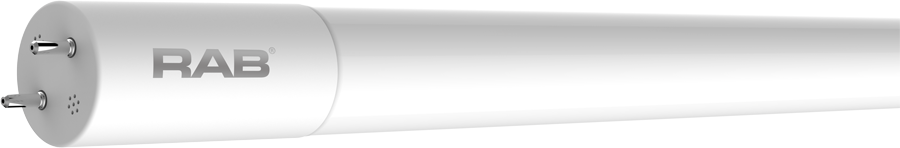

Product image for RAB T8-10.5-48G-850-DE-BYP LED 4ft
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

RAB T8-10.5-48G-850-DE-BYP LED 4ft

Manufacturer: RAB Lighting | Catalog # T8-10.5-48G-850-DE-BYP | Codale Part # 4454163
$20.14/ea
ea
Order in multiples of 25 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Linear Tubes 1700 Lumens T8 10.5W 4 Feet Glass 80CRI 5000K Double Ended Wiring Method Ballast Bypass

Technical Information

Applications
Damp Locations,Totally Enclosed Fixtures
Average Rated Life
50,000 hr
Base Type
G13
Beam Angle
210 degrees
Beam Spread
220 degrees
Bulb Shape
T8
Color Accuracy
82
Color Rendering Index
82
Color Temperature
5000 K
Correlated Color Temp
5,000 K
Dimmable?
No
Efficacy
161 LPW
Input Voltage
120 V
Input Wattage
10.5
Lumens
17,000 Lumen
Material
Glass
Operating Frequency
60 Hz
Operating Temperature
-20 degrees C
Power Factor
>0.9,>0.9
Type
HID Lamps&Specialities
Wattage
10.5 Watt

Manufacturer Information

Brand
Rab Design Lighting

General Product Info

12-Digit UPC
019813833354
Color
5000 K
Finish
Frosted
Product UPC
01981383335
Weight
0.6 lb

Dimensions

Length
4 Foot
Warranty Length
5 yr
Features
  • Replacement for conventional fluorescent T8 and T12 linear tubes
  • Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
  • Double ended wiring method
  • Works with shunted sockets.
  • Approximately 50% more energy efficient when compared to Fluorescent T8 lamps
  • 50,000 hour Lifespan.
  • Rated for use in enclosed and open fixtures in dry or damp locations
  • Diffused frosted lens will maintain the same light quality over time
  • Instant on full brightness
  • Environmentally friendly, no mercury used
  • NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
  • Internal thermal fuse for added safety
  • Emergency back up available. Catalog Numbers: DRI-5-EMGR-T8, DRI-10-EMGR-TYPE B
  • Phase cut dimming
  • Equivalency
  • Warranty
