Klein CL320KIT HVAC Electrical Test Kit

Manufacturer: Klein Tools | Catalog # CL320KIT | Codale Part # 4454430
$139.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet

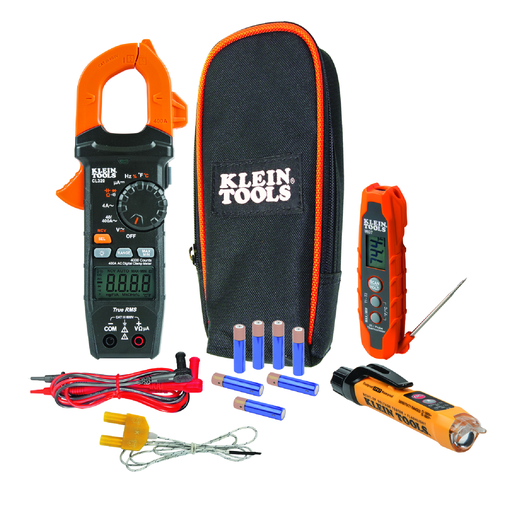

Klein Tools HVAC Electrical Test Kit features Cat. No. CL320 Auto-Ranging, TRMS (True Root Mean Square), 400A HVAC Clamp Meter; Cat. No. IR07 Dual IR and Probe Thermometer, for both surface and air temperature measurements; and Cat. No. NCVT3P Dual Range Non-Contact Voltage Tester With Flashlight, for detection of AC voltage from 12 to 1000V with visual and audible indicators. Included is a convenient carrying pouch, test leads with CAT III/CAT IV safety caps, thermocouple, and all batteries.

Technical Information

Applications
HVAC Electrical and Temperature Testing
Display Type
LCD
Frequency
1 MHz
Material
ABS,Electronic Components
Type
HVAC Testers

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644693496
Product UPC
09264469349
Weight
1.650 lb

Dimensions

Depth
11 Inch
Height
1-1/2 Inch
Overall Length
8.45 in
Width
3.5 in

Certifications and Compliance

Country of Origin
China
Warnings
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Do not attempt to measure resistance or continuity on live circuits.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
  • Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
Features
  • HVAC Kit with testers for the HVAC Professional; Cat. No. CL320 HVAC Digital Clamp Meter with AC Auto-Ranging, Cat. No. IR07 Dual IR/Probe Thermometer, and Cat. No. NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight
  • HVAC Clamp Meter Cat. No. CL320 with TRMS measurement technology measures AC current, NCVT, AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, continuity, and temperature

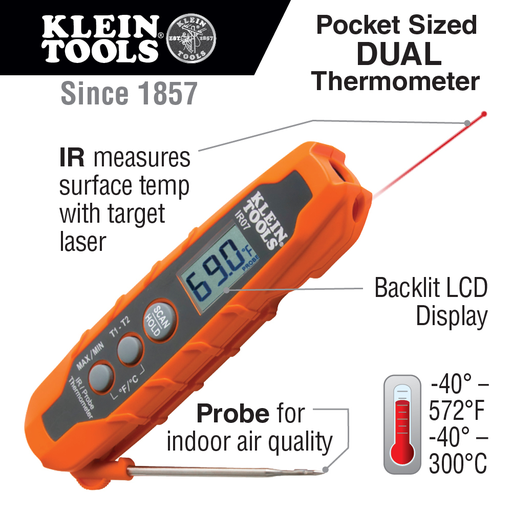

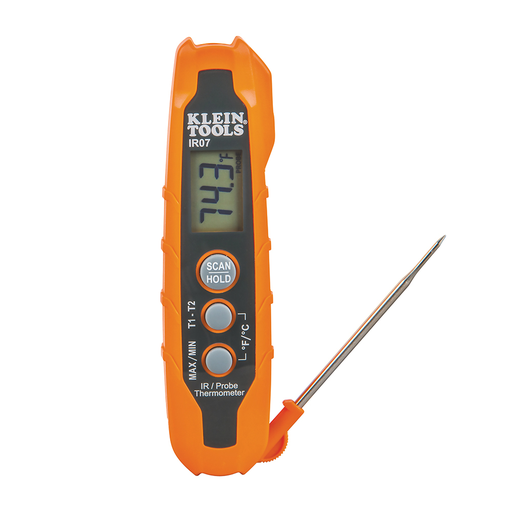

  • Cat. No. IR07 Dual IR Probe and Thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius); accurately measure surface temperature with Infrared Thermometer (DS ratio 8:1)
  • Measure air vents and duct temperature using temperature probe with hands-free hanging hook; calculate differential temperature (T1-T2) for both IR and probe temperatures; IR07 is not a medical device and is NOT intended for use on people or animals
  • Cat. No. NCVT3P is dual-range and detects from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications; detects voltage with simultaneous visual and audible voltage indicators
  • Bright flashlight illuminates work area and may be used independent of voltage detection function; CAT IV 1000V rating provides expanded operation and protection
  • Cat. No. CL320: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology; CAT. No. NCVT3P: NCVT with flashlight; Cat.No. IR07 Both IR and Probe Temperature
  • HVAC Kit with testers for the HVAC Professional: HVAC Digital Clamp Meter, Dual IR/Probe Thermometer, and Dual Range Non-Contact Voltage Tester with Flashlight
  • Cat. No. CL320 HVAC Clamp Meter with TRMS technology measures AC current, NCVT, AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, continuity, and temperature
  • Cat. No. IR07 Dual IR Probe and Thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius); measure surface temperature with Infrared Thermometer (DS ratio 8:1)
  • Measure air vents and duct temperature using temperature probe with hands-free hanging hook; calculate differential temperature (T1-T2) for both IR and probe temperatures
  • Cat. No. NCVT3P is dual-range and detects from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
  • Non-Contact Voltage Tester detects voltage with simultaneous visual and audible voltage indicators
  • IR07 Thermomenter is not a medical device and is NOT intended for use on people or animals
  • IR07 Thermometer is not a medical device and is NOT intended for use on people or animals
