Product image for LEV DOS02-LW WH OCC SENSOR 250WINC
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

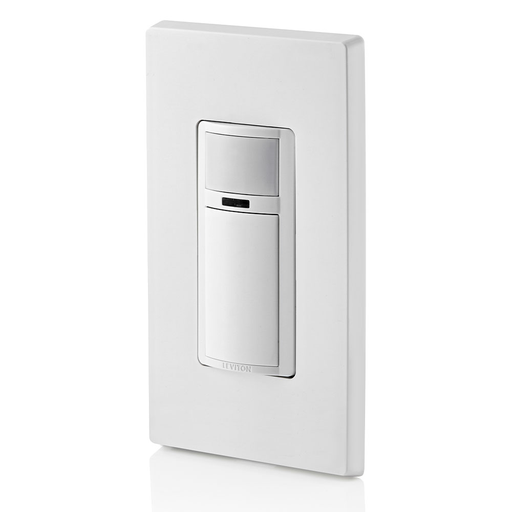

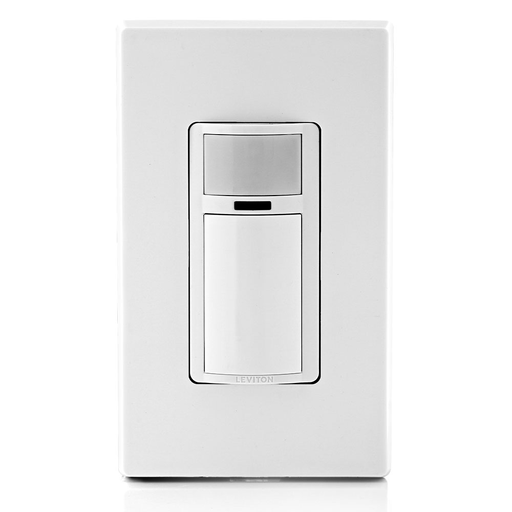

LEV DOS02-LW WH OCC SENSOR 250WINC

Manufacturer: Leviton | Catalog # DOS02-LW | Codale Part # 4454437
$63.42/ea
ea
Log in or register to view your price, purchase history, and more!
15 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Decora Occupancy Motion Sensor Light Switch. 180. PIR Automatic-on Wallbox Sensor, single pole, 150W LED/CFL, 250W Incandescent/Halogen, 200VA Magnetic Low Voltage, 250VA Electronic Low Voltage, 2A Resistive, wallplate sold separately. Can be used to comply with the California Title 24, Part 6, Automatic-off Controls and IECC . White

Technical Information

Amperage
2 Amp
Applications
Ideal for Pantries, Closets, Laundry Rooms and Basements
Grade
Residential
LED Color
Green,Red
Lens Type
Green and Red LED
Mounting Type
Wall
Number of Poles
1 Pole
Response Time
1 min, 5 min, 10 min, 20 min
Sensor Type
Passive Infrared
Type
In-Wall Switch, Auto-On/Off, Decora Motion
Voltage
120 VAC

Manufacturer Information

Brand
Leviton
Sub Brand
RESIDENTIAL OCCUPANCY SENSORS

General Product Info

12-Digit UPC
078477225899
Color
White
Product UPC
07847722589
Weight
0.2600 lb

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Ideal for pantries, closets, laundry rooms and basements
  • Occupancy Sensor Mode default for Automatic ON/Automatic OFF operation. Can switch to Vacancy Mode for Manual ON/Automatic OFF
  • Controls LED, CFL, Incandescent, Halogen, Magnetic Low Voltage, Electronic Low Voltage
  • Provides 180° Field-of-View, 900 sq. ft. of coverage
  • Shallow design easily fits in the wallbox and can replace a single pole switch
  • Leaded terminals for easier installation
  • Can be connected to a Neutral wire if present in the wallbox, or connected to ground wire if no Neutral wire is present in the wallbox
  • Interchangeable line and load wires
  • Program settings without removing the wallplate or faceplate
  • Low profile design blends in with walls for a discreet appearance
  • Ambient light override prevents sensor from switching the lights ON when there is ample natural sunlight
  • Adjustable delayed OFF time which can be set for 1 minute, 5 minutes, 10 minutes or 20 minutes
  • Adjustable Range (sensitivity) to fit various coverage areas
  • Convenient push-button provides Manual OFF light switching at any time
  • Can be used to comply with the California Title 24, Part 6, Automatic-off Controls and IECC

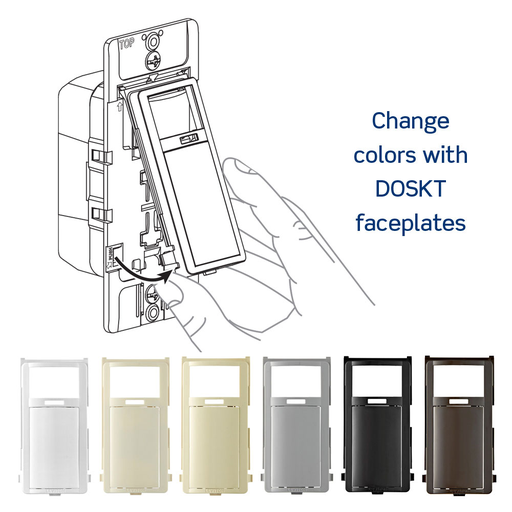

  • Color change faceplates DOSKT are available in white, ivory, light almond, gray, black, brown
  • Five-Year Limited warranty
  • CONVENIENT Automatically turns lights on/off based on motion. Provides 180° Field-of-View, 900 sq. ft. of coverage
  • EASY TO INSTALL Shallow design easily fits in the wallbox
  • FLEXIBLE Install with or w/out a neutral wire, ground required
  • VERSATILE Can be set for vacancy (manual-on) switching
  • PRACTICAL Perfect for pantry, closet, laundry room and basement
  • STYLISH Easily change the color using DOSKT faceplates available in white, ivory, light almond, gray, black and brown
Color Variations
  • Ivory
Patents
  • US11264189
  • US11815868
