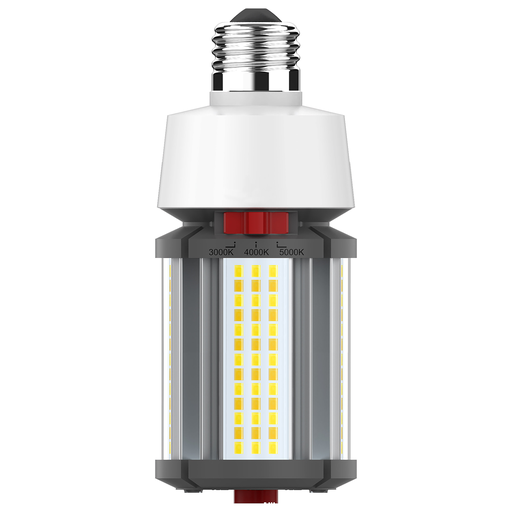

Satco S23146 18/16/12 Wattage Selectable; LED HID Replacement; CCT Selectable; Medium base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology

Manufacturer: SATCO Lighting | Catalog # S23146 | Codale Part # 4454656
$83.67/ea
ea
Log in or register to view your price, purchase history, and more!
27 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
18/16/12W LED HID Replacement - Wattage & CCT Selectable - Medium Base - 100-277 Volts

Technical Information

Amperage
0.120-0.043 Amp
Applications
For Indoor/Outdoor
Average Rated Life
50000 hr
Beam Angle
300
Beam Spread
300
Color Temperature
3000 K
Correlated Color Temp
3000 K
Dimmable?
Yes
Incandescent Equivalent
90 W
Indoor Outdoor
Indoor;Outdoor
IP Rating
IP64
Lens Material
Plastic
Lumens
1,680 Lumen
Material
Plastic
Operating Temperature
-40 degrees C
Power Factor
0.9
Technology Type
LED
Temperature Rating
-40 degrees C
Type
Corncob
Voltage
100 Volt
Wattage
12 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923231469
Environmental Conditions
Damp Wet Location Rated
Finish
White
Housing Color
Gray
Product UPC
04592323146
Weight
0.55 lb

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • CCT Selectable-3000K, 4000K, 5000K

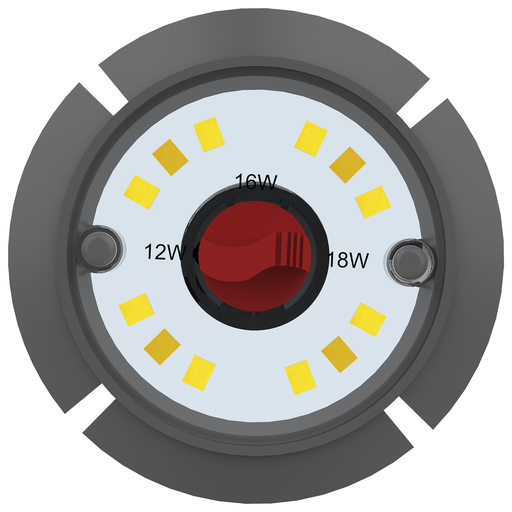

  • Wattage Selectable
  • Enclosed Fixture Rated
  • Advanced Thermal Management
  • Damp Location Rated
  • 4KV Built in Surge Protection
  • Rated for 50,000 hours of use
  • Power selectable
Ballasting Requirements
  • Ballast Bypass
Installation Notes
  • Not for use in vapor tight fixtures.
