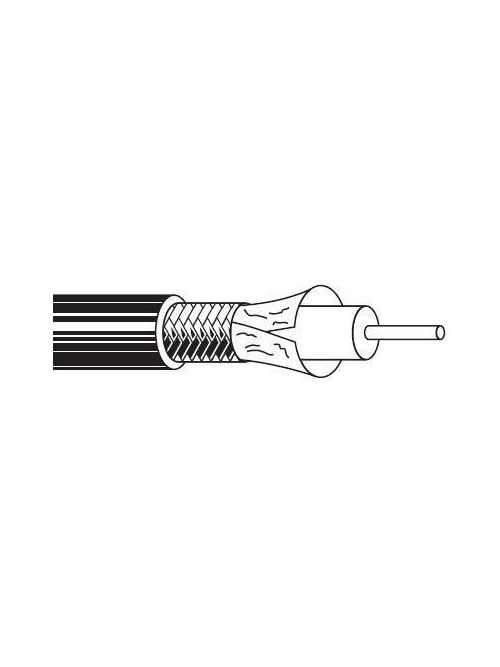

Product image for BELDEN 1694A 0101000 RG6 18G SDI COAX 75-OHM REEL BLK (OD .274)
Image thumbnail 0
Image thumbnail 1
Email

BELDEN 1694A 0101000 RG6 18G SDI COAX 75-OHM REEL BLK (OD .274)

Manufacturer: Belden | Catalog # 1694A | Codale Part # 4455324
$1,939.03/m (1000 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
2,000 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
75 Ohm SDI Coax, RG-6, 18 AWG Solid Bare Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMR

Technical Information

Bend Radius
2-3/4 in
Conductor Material
Bare Copper
Conductor Size
18 AWG
Impedance
75 ?
Insulation Material
Foam Polyethylene
Material
PVC
Number of Conductors
1
Resistance
6.4 ?/1000 ft
Shield Type
Braided, Tape
Shielding Type
Braid(s),Foil
Temperature Rating
-20 to 75 degrees C
Type
RG6/U, SDI Coax
Voltage
300 Volt
Wire Size
18 AWG

Manufacturer Information

Brand
Belden

General Product Info

12-Digit UPC
612825358190
Environment
Indoor,Outdoor
Jacket Color
Black
Jacket Material
PVC
Product UPC
1694A0101000
Used With
Digital Video, 6Gb/s UHDTV, HD-SDI1080p
Weight
0.0650 lb

Dimensions

Outside Diameter
0.274 in
Suitable Applications
  • Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p
