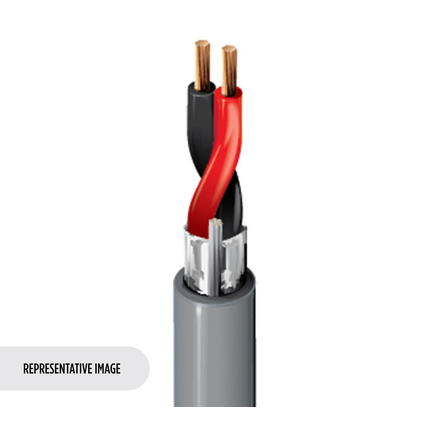

Product image for BELDEN 5200FE 008U1000 16/2C (X) OAFS PVC GRY JACKET (OD .184)
Image thumbnail 0
Image thumbnail 1
Email

BELDEN 5200FE 008U1000 16/2C (X) OAFS PVC GRY JACKET (OD .184)

Manufacturer: Belden | Catalog # 5200FE | Codale Part # 4455359
$1,219.27/m (1000 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Security & Commercial Audio Cable, Riser-CMR, 2-16 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord

Technical Information

Amperage
6.25 Amp per Conduc-r at 25 C
Applications
For Security System, Intercom/PA, Audio/Speaker, Noisy Environment
Bend Radius
2 in
Conductor Material
Bare Copper
Conductor Size
16 AWG
Insulation Material
Polypropylene
Insulation Thickness
0.008 in
Material
PVC
Number of Conductors
2
Resistance
4 ?/1000 ft
Shield Type
Tape
Shielding Type
Overall Foil(s)
Stranding
19x29
Temperature Rating
-20 to 75 degrees C
Type
Commercial Audio, Shielded
Voltage
300 Volt

Manufacturer Information

Brand
Belden

General Product Info

12-Digit UPC
612825157274
Environment
Indoor,Riser
Jacket Color
Gray
Jacket Material
PVC
Jacket Thickness
0.017 in
Product UPC
5200FE008U1000
Weight
24 lb/1000 ft

Dimensions

Outside Diameter
0.188 in
Suitable Applications
  • Security System, Intercom/PA, Audio/Speaker, Noisy Environment
