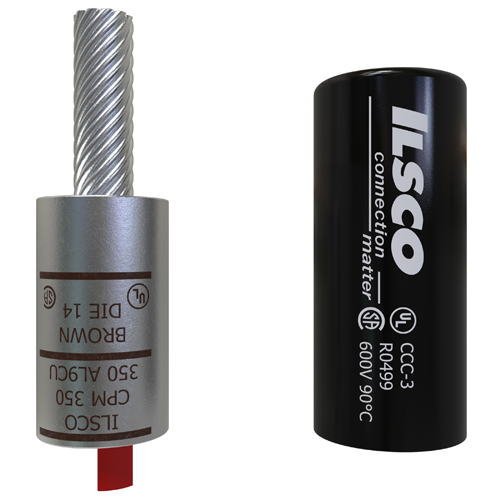

Product image for Ilsco CPM-350 Copper Compression Pigtail Adaptor, Conductor Size 350, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco CPM-350 Copper Compression Pigtail Adaptor, Conductor Size 350, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CPM-350 | Codale Part # 445556
$67.06/ea
ea
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
ILSCO Copper Pigtail Adaptor, Compression connection, Dual Rated, Copper material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 350 kcmil, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Brown, primary color Silver, die index 14,

Technical Information

Applications
Terminating Connector
Barrel Length
2.062 in
Barrel Type
Standard
Color Coding
Brown
Conductor Material
Aluminum,Copper
Conductor Size
350 kcmil
Conductor Type
Stranded
Connection Type
Compression
Contact Material
Aluminum/Copper
Material
Copper
Number of Conductors
1
Pin Length
1.617 in
Size
L:4.625;W:1.335;H:1.335 IN
Standard
UL Specifications: UL 486A-B,UL File Number: E62525,CSA File Number: LR-29601
Temperature Rating
90 degrees C
Type
Straight
Voltage
600 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669008609
Color
Silver
Product UPC
78366900860
Weight
0.191 lb

Dimensions

Height
1.335 Inch
Inside Diameter
0.705 in
Length
4-5/8 Inch
Outside Diameter
1.155 in
Width
1.335 in
