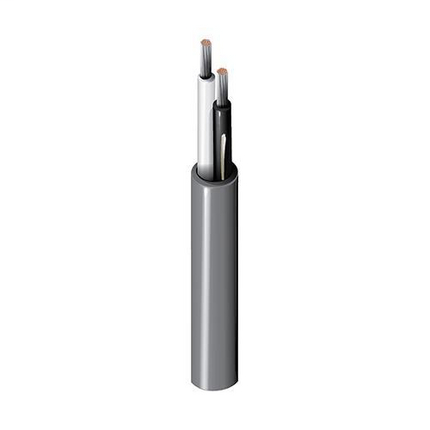

Product image for BELDEN 8471 0601000 16/2C (X) NS PVC CHROME CMG (OD .274)
Image thumbnail 0
Image thumbnail 1
Email

BELDEN 8471 0601000 16/2C (X) NS PVC CHROME CMG (OD .274)

Manufacturer: Belden | Catalog # 8471 | Codale Part # 4455594
$5,787.52/m (1000 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

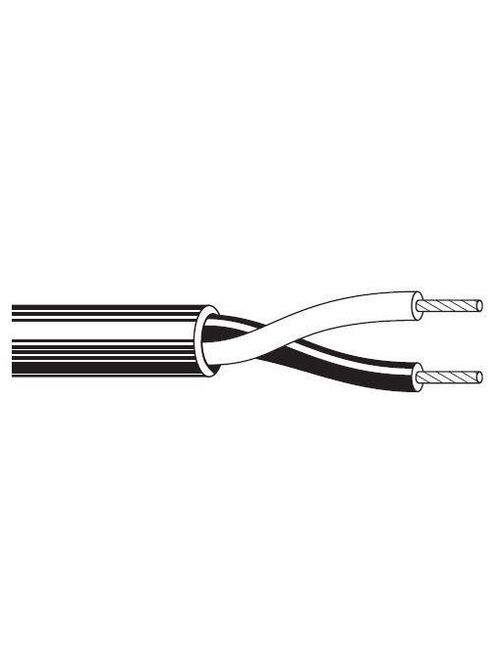

Electronic, 2 Conductor 16AWG (19x29) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG

Technical Information

Amperage
6.1 Amp
Applications
For Indoor Applications
Bend Radius
2.7 in
Conductor Material
Tinned Copper
Conductor Size
16 AWG
Insulation Material
PVC
Insulation Thickness
0.023 in
Material
PVC
Number of Conductors
1 Pair
Number of Pairs
1
Shield Type
Unshielded
Shielding Type
Unshielded
Stranding
19x29
Temperature Rating
-20 to 80 degrees C
Type
Electronic
Voltage
300 Volt

Manufacturer Information

Brand
Belden
Sub Brand
Overall Beldfoil®

General Product Info

12-Digit UPC
612825208525
Jacket Color
Chrome
Jacket Material
PVC
Jacket Thickness
0.032 in
Product UPC
61282520852
Used With
Low Voltage Analog Signals (4 - 20 mA, 0 - 10 V), Low Voltage Digital Control (24 V), Line Level Audio, Computer Communication, Panel Wiring
Weight
0.0500 lb

Dimensions

Outside Diameter
0.274 in
Suitable Applications
  • low voltage analog signals (4-20ma, 0-10v, ...)
  • low voltage digital control (24v, )
  • line level audio
  • computer communication
  • panel wiring
