BELDEN 9451 010U1000 22/1P (X) OAFS 300V CMR BLK CBOX (OD .135)

Manufacturer: Belden | Catalog # 9451 | Codale Part # 4455656
$749.69/m (1000 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
23,000 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet

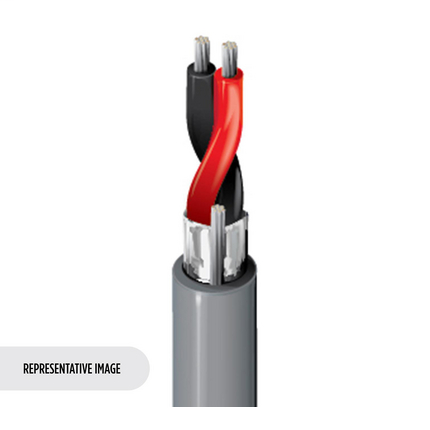

Audio Cable, 1 Pair 22 AWG stranded (7x30) tinned copper pair, polypropylene insulation, Beldfoil® shield, drain, Riser, PVC jacket.

Technical Information

Amperage
2.9 Amp per Conduc-r at 25 C
Applications
For Automatic Stripping Equipment, Low Voltage analog Signals (4 - 20 mA, 0 - 10 V), Low Voltage Digital Control (24 V), Line Level audio, Computer Communication, Panel Wiring
Bend Radius
1-1/2 in
Conductor Material
Tinned Copper
Conductor Size
22 AWG
Impedance
45 ?
Insulation Material
Polypropylene
Insulation Thickness
0.009 in
Material
PVC
Number of Conductors
2
Resistance
14.1 ?/1000 ft
Shield Type
Tape
Shielding Type
Multiple,Specialty
Stranding
7x30
Temperature Rating
-20 to 75 degrees C
Type
Shielded
Voltage
300 Volt

Manufacturer Information

Brand
Belden

General Product Info

12-Digit UPC
612825252771
Environment
Indoor,Riser
Jacket Color
Gray
Jacket Material
PVC
Jacket Thickness
0.02 in
Product UPC
9451010U1000
Weight
14 lb/1000 ft

Dimensions

Outside Diameter
0.135 in
Suitable Applications
  • Automatic Stripping Equipment
  • Low Voltage analog Signals (4-20mA, 0-10V, ...)
  • Low Voltage Digital Control (24V, )
  • Line Level audio
  • Computer Communication
  • Panel Wiring
