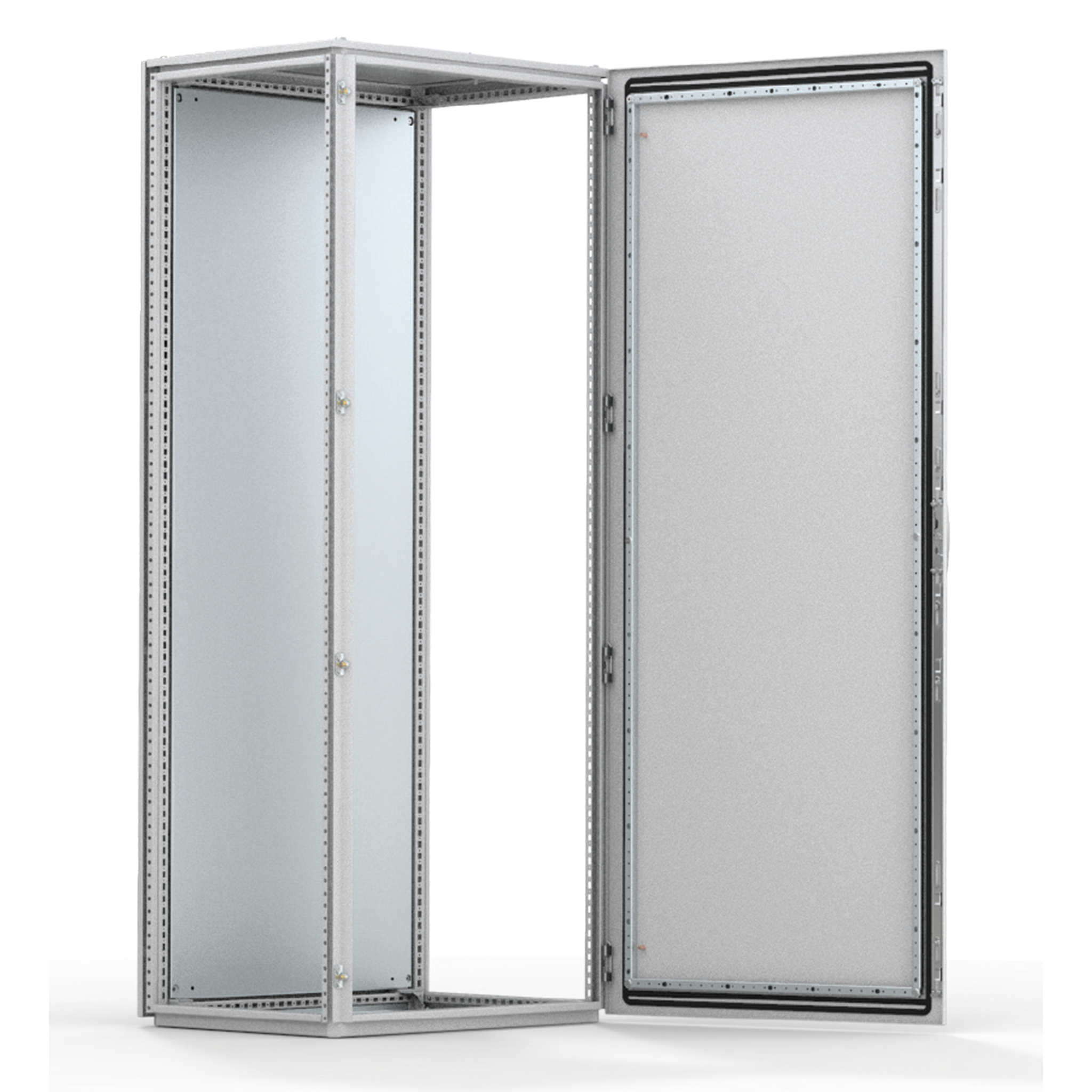

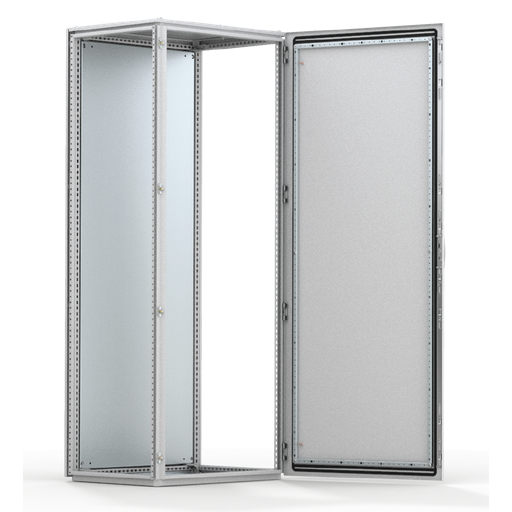

NVENT HOF MCS20066R53R Floor-Stand

Manufacturer: nVent Hoffman | Catalog # MCS20066R53R | Codale Part # 4457452
$3,254.21/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Single-door, combinable, floor-standing enclosure range, MCS, with IP 32/Type 3R rating. This Modular Single Door Type 3R, MCS-3R, MCS20066R53R item measures 2000x600x600mm with a material of Mild Steel colored Light Gray.

Technical Information

Color Coding
RAL 7035
Enclosure
3R
Material
Steel

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510582746
Color
Gray
Finish
Powder Coated
Product UPC
78351058274
Weight
245.59 lb

Dimensions

Depth
23.62 Inch
Height
78.74 Inch
Length
24 Inch
Thickness
1.5 mm
Width
23.62 in
Features
  • Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660 Including integrated external hole pattern
  • Door: Mounted with four hinges allowing left or right hand opening; including door frame with 25 mm hole pattern
  • Rear panel: Fitted by M6 torx screws; standard facilities for rear door mounting
  • Supplied as an accessory
  • Removable roof panel
  • Lock: Espagnolette 4-point locking system which does not interfere with the enclosure inner space; standard double-bit lock with 3 mm insert
  • Bottom plate: Consists of three or four (D>600) pieces
  • Mounting plate: Double folded and slides into position with adjustable depths of 25 mm, with the MPD02 accessory
  • Earthing/Grounding: All panels are earthed through their fittings and are equipped with a separate earthing stud
  • Mounting requirements: Standard delivery ready for combined installation; for stand-alone installation add side panels
  • Delivery: Frame with fitted door, rear panel, roof panel, bottom plates, mounting plate and door frame; for enclosures 2200 mm height, delivery includes two CMB profiles mounted in depth; delivery also includes earthing bolts
