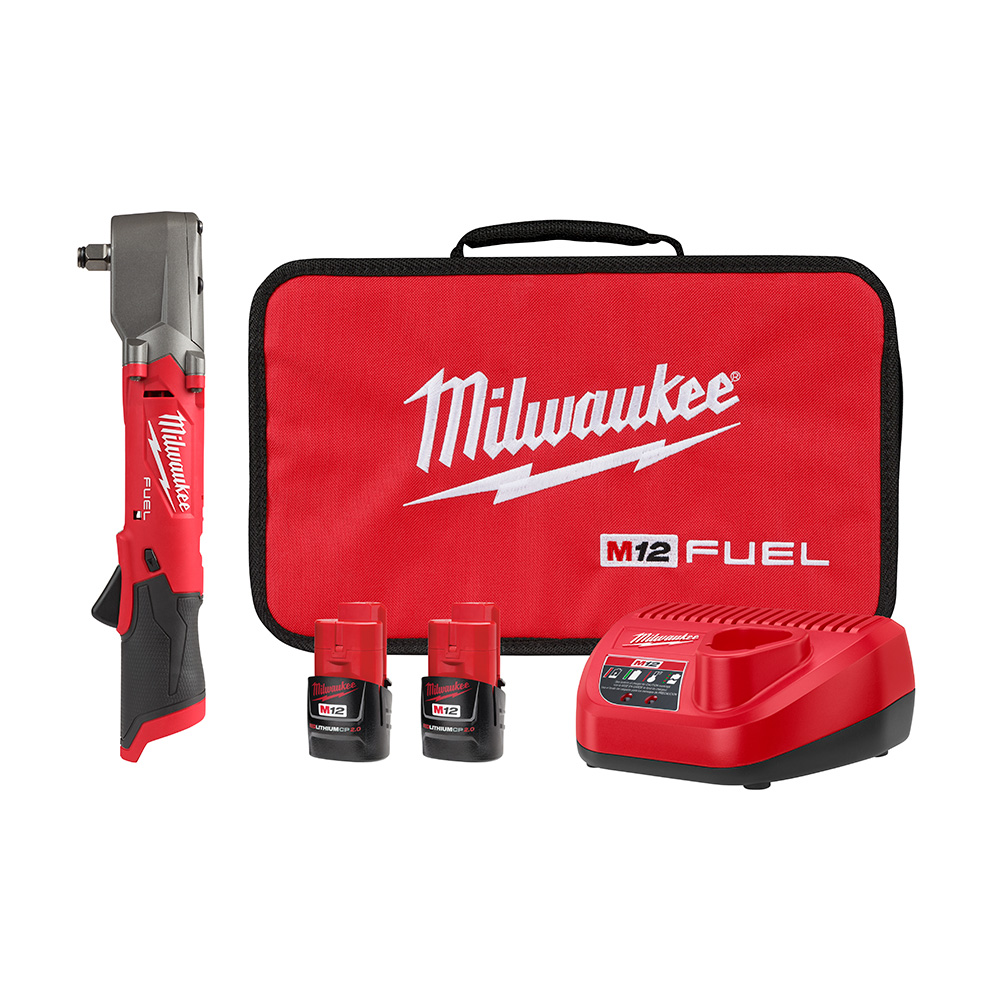

Milwaukee 2565-22 1/2 in. Right Angle Im

Manufacturer: Milwaukee Tool | Catalog # 2565-22 | Codale Part # 4458096
$379.00/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet
More Access in Tight Spaces

Technical Information

Applications
For Various Fastening and Bolt Removal Applications
Battery Type
Lithium-Ion
Control Type
4-Mode
Cord Type
Cordless
Drive Size
1/2 in
Drive Type
Right Angle
Handle Type
Straight
Material
Aluminum
Max Rpm
3000 rpm
Net Weight
3.25 lb
No Load Speed
1350/2700/3600 r/min
Number of Batteries
2
Power Source
Cordless
Type
Cordless
Voltage
12 Volt

Manufacturer Information

Brand
Milwaukee Tool
Sub Brand
M12 Fuel™

General Product Info

12-Digit UPC
045242559046
Color
Black,Red
Product UPC
04524255904
Weight
2.85 lb

Dimensions

Height
2.98 Inch
Length
14.17 Inch
Width
2.32 in
Features

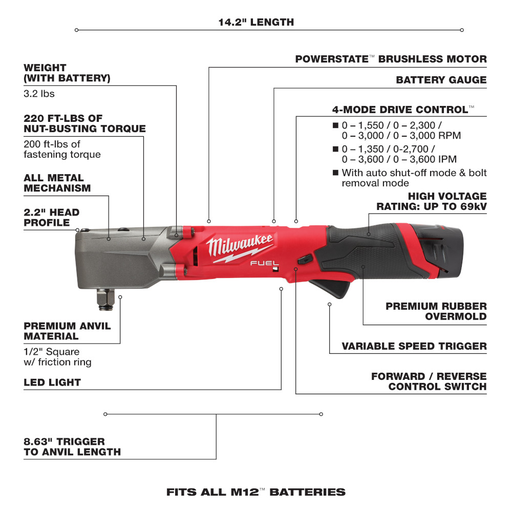

  • POWERSTATE™ Brushless Motor delivers up to 220 ft-lbs. of nut-busting torque, making it the most powerful cordless right angle impact wrench on the market

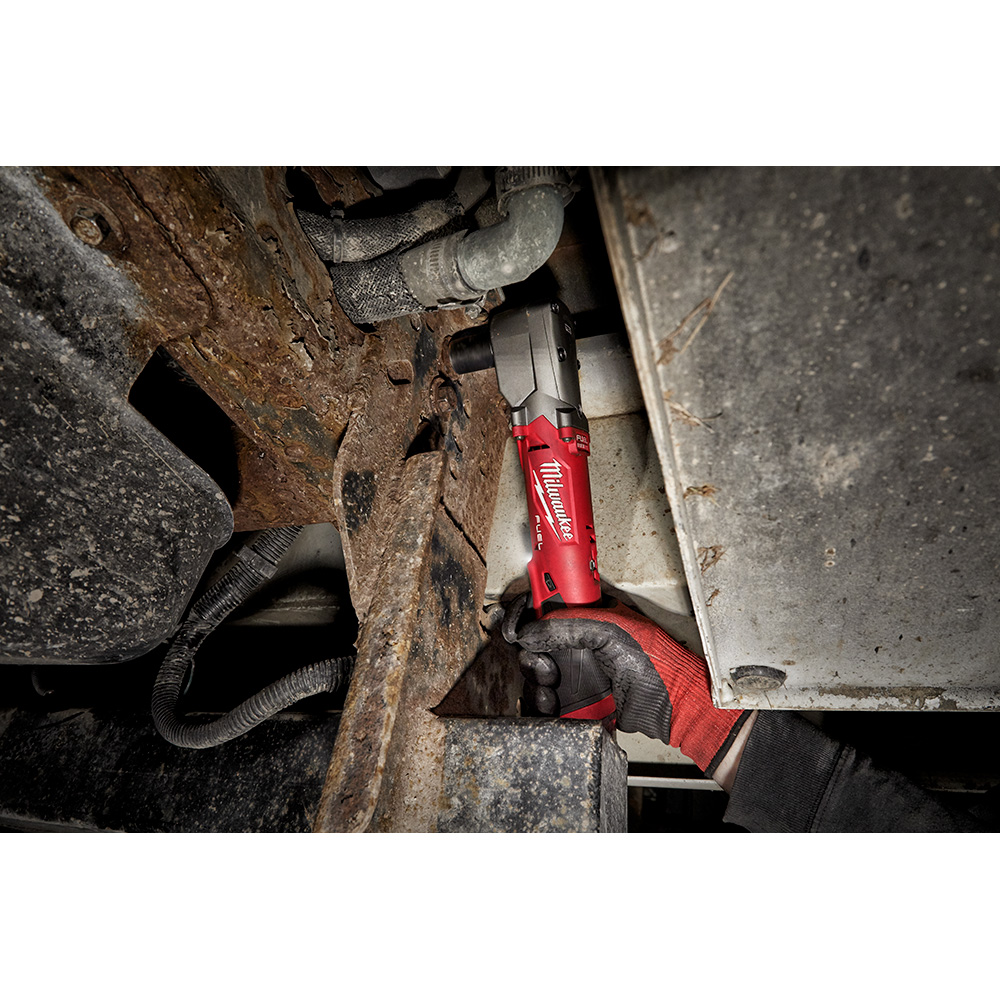

  • More Access in Tight Spaces
  • 4-Mode Drive Control
  • A 2.8\" head profile design allows for more access in tight spaces
  • Auto shut-off mode prevents over tightening and increases productivity by applying no more than 15 ft-lbs. of torque.
  • Bolt-removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened.
  • The long body profile of 14.17\" allows for more access in hard to reach spaces
  • REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
  • LED light to illuminate the work area
  • Premium rubber overmold withstands corrosive materials and provides increased comfort when in use
