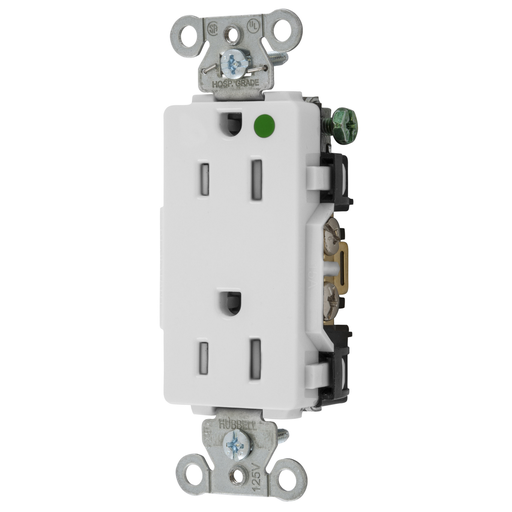

Product image for Hubbell 2172WTRA Straight Blade Device, Tamper Resistant Decorator Duplex Receptacle, Hospital Grade, Hubbell-Pro, 15A 125V, 2- Pole 3-Wire Grounding, 5-15R, White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell 2172WTRA Straight Blade Device, Tamper Resistant Decorator Duplex Receptacle, Hospital Grade, Hubbell-Pro, 15A 125V, 2- Pole 3-Wire Grounding, 5-15R, White

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # 2172WTRA | Codale Part # 4458843
$39.24/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Tamper Resistant Decorator Duplex Receptacle, Hospital Grade, Hubbell-Pro, 15A 125V, 2- Pole 3-Wire Grounding, 5-15R, White

Technical Information

Amperage
15 Amp
Applications
Hubbell-Pro Heavy Duty Hospital Grade
Conductor Size
14-10 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
0.5 hp
Material
Nylon
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
3.28 in x 1.57 in x 1.15 in
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Style Line Decorator
Type
Non-Reversing
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated

General Product Info

12-Digit UPC
783585541891
Color
White
Product Series
Hubbell-Pro
Product UPC
78358554189
Weight
0.2 lb

Dimensions

Height
1.15 Inch
Length
3.28 Inch
Width
1.57 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Tamper-resistant shutter complies with national electrical code requirements
  • Triple wipe contacts
  • High impact resistant decorator face
  • Steel mounting strap
  • Tamper Resistant, USA Product
