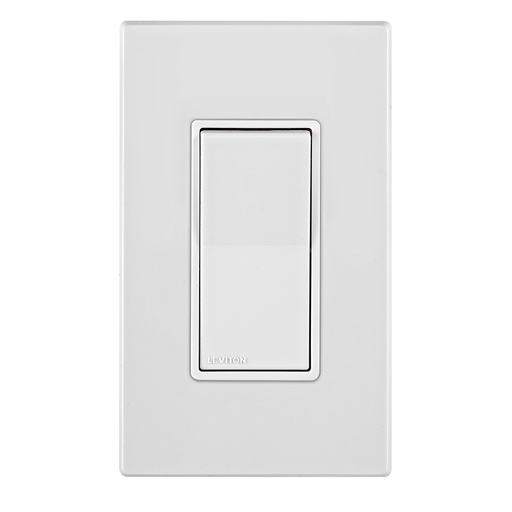

LEV E5603-W DECORA EDGE 15A 120/277

Manufacturer: Leviton | Catalog # E5603-W | Codale Part # 4462528
$6.73/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

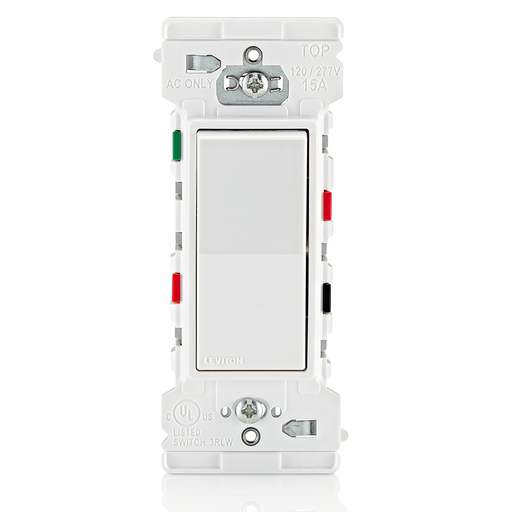

15 Amp, 120/277 Volt, Lever Edge 3-Way AC Quiet Switch, Residential Grade, Self-grounding - White

Technical Information

Amperage
12 Amp
Body Material
Thermoplastic
Device Type
Rocker Switch
Grade
Residential
Grounding
Self-Grounding
Material
Thermoplastic
Terminal Type
Side Lever
Termination Type
Side Lever
Type
3-Way, Residential Grade, Self-Grounding
Voltage
120/277 VAC

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477332528
Color
White
Product UPC
07847733252

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
China
Features
  • Provides the traditional appearance and superior performance of Decora® devices in a new, faster, easier-to-install, and safer design

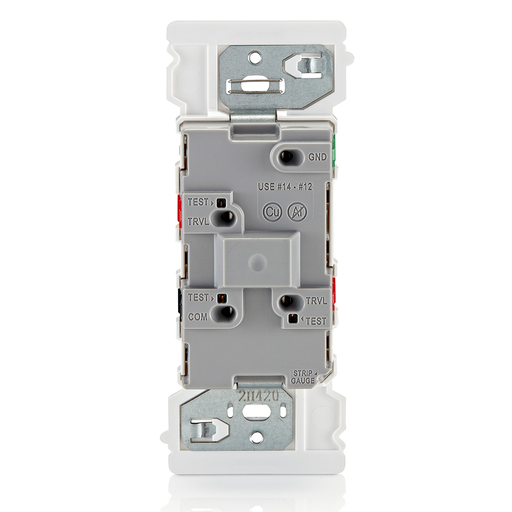

  • Unique lever terminals for fast, efficient wiring
  • Color-coded lever terminals reduces risk of miswiring

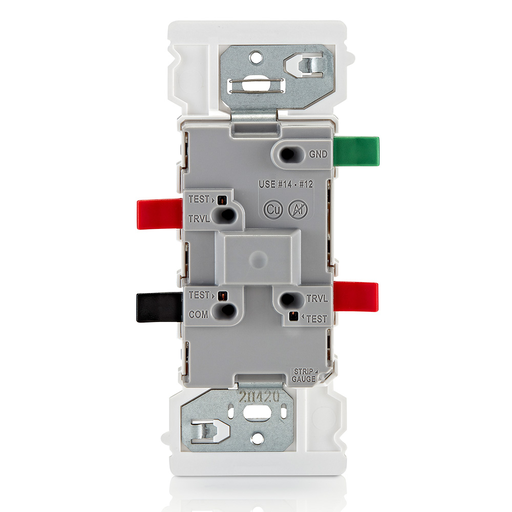

  • Lever doors have snap feature to assure connection has been made; audible click confirms lever door is closed
  • Only Residential device on the market with a quick termination ground wire
  • No exposed metal parts for enhanced safety; eliminates need for electrical tape
  • Straps unique tongue and groove alignment offers quicker trim out on multi-gang installations
  • Lever connectors work with 14 gauge and 12 gauge stranded and solid copper wire
  • Wire openings prevent wire insulation from being inserted into the terminals
  • One standard strip gauge for all devices
  • Devices coordinate seamlessly with other Decora devices
  • Longer and wider strap is compatible with Midway wallplates, and with Standard sized wallplates when breakaway tab is removed
  • Can be used with Decora wallplates and Decora Plus™ screwless wallplates
  • Test openings for circuit testers
  • Controls light(s) from two locations
  • Two 3-way switches must be used in a 3-way application

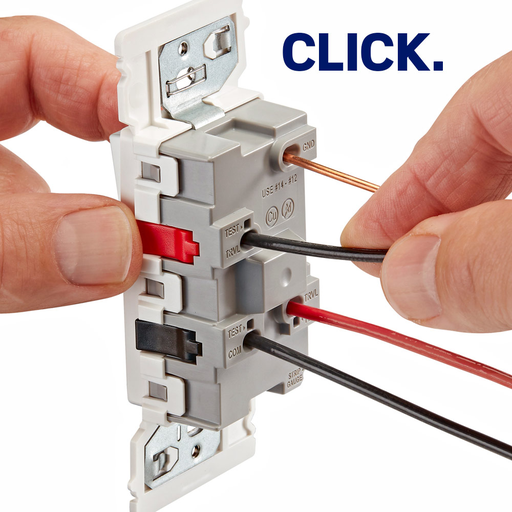

  • FASTER Unique lever terminals for fast, efficient wiring. As Easy as PUSH. CLICK. DONE.
  • EASIER Large strap makes installations easier as well as the ability to use 14 gauge and 12 gauge stranded and solid copper wire
  • SAFER No exposed metal parts for enhanced safety
  • CONVENIENT Color-coded lever terminals to help prevent miswiring
  • COMPATIBLE Coordinates seamlessly with other Decora devices and can be used with any sized Decora wallplate
Patents
  • US11791573
