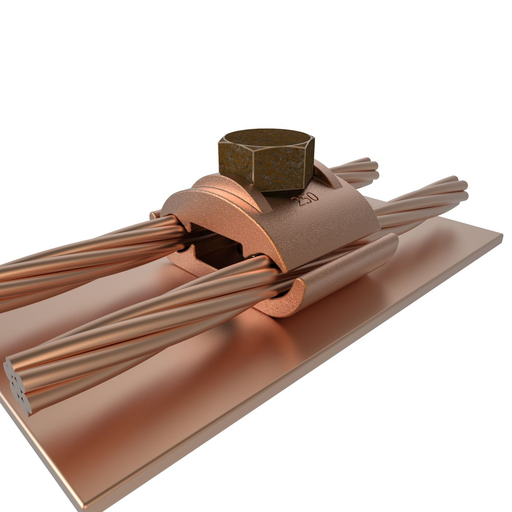

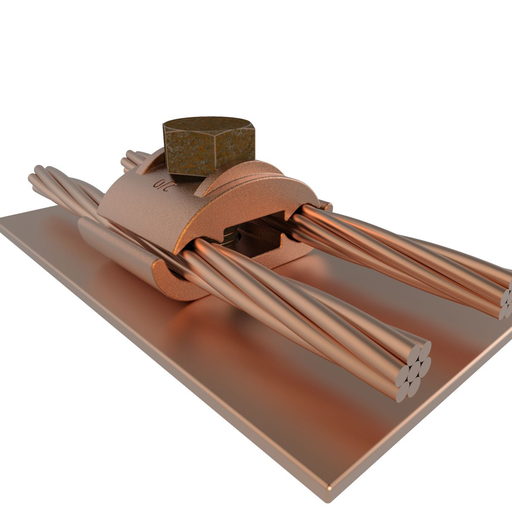

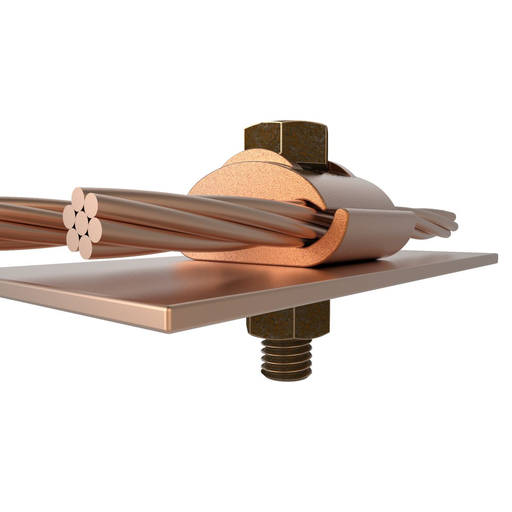

Product image for Burndy GC3434 Mechanical Grounding Connector, 2 Copper Cables to 1/4" Thick Bar, 300 kcmil - 500 kcmil, 1/2" Stud
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Burndy GC3434 Mechanical Grounding Connector, 2 Copper Cables to 1/4" Thick Bar, 300 kcmil - 500 kcmil, 1/2" Stud

Manufacturer: Hubbell-Burndy | Catalog # GC3434 | Codale Part # 4465037
$93.92/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Mechanical Grounding Connector, 2 Copper Cables to 1/4" Thick Bar, 300 kcmil - 500 kcmil, 1/2" Stud.

Technical Information

Applications
For Joining a Wide Range of Two Parallel Copper Cables, Direct Burial in Concrete or Ground
Bolt Size
3/8 IN
Conductor Size
300-500 kcmil
Material
Copper
Mounting Type
3/8 in Hole
Plated?
No
Plating Type
Unplated
Standard
3R,C22.2 No. 0.4,C22.2 No. 18,C22.2 No. 94 Enclosures Types 1,UL 514C,UL467,UL50 Enclosures Types 1
Type
Mechanical

Manufacturer Information

Brand
Burndy
Sub Brand
MECHANICAL CONNECTOR

General Product Info

12-Digit UPC
781810231753
Product UPC
78181023175
Weight
0.9300 lb

Dimensions

Height
2.82 Inch
Length
1.62 Inch
Overall Length
41 mm
Width
65 mm

Certifications and Compliance

Country of Origin
Mexico
CSA
No
Features
  • High copper alloy ground connector for joining a wide range of 2 parallel cables to 1/2\" thick bar
  • Type GC separates cable from bar
  • Type GCM clamps cable direct to bar surface
  • One wrench installation
  • UL467 Listed
  • Suitable for Direct Burial in earth or concrete
