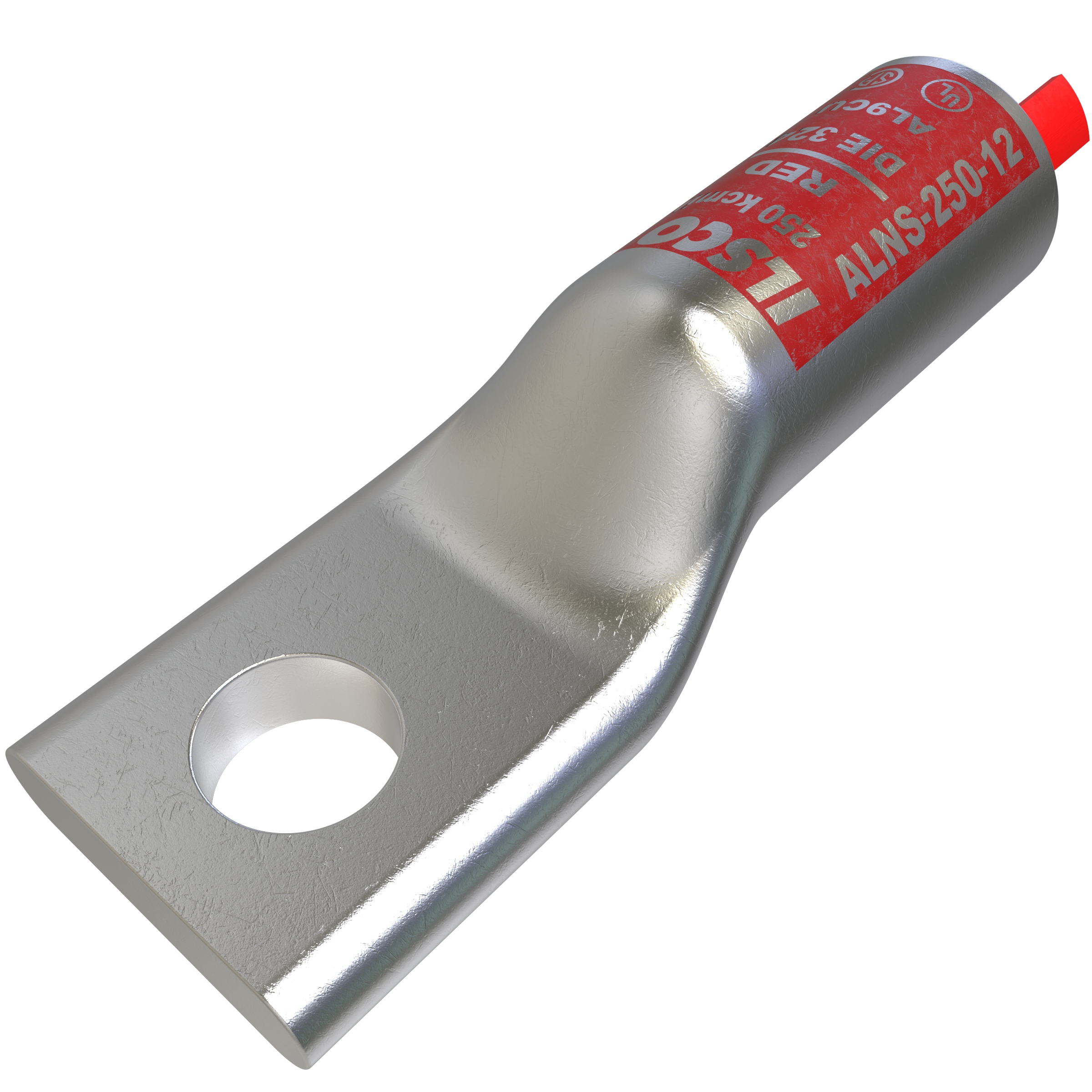

Product image for Ilsco ALNS-250-12 SureCrimp® Aluminum Compression Lug, Conductor Size 250, 1 Hole, 1/2in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco ALNS-250-12 SureCrimp® Aluminum Compression Lug, Conductor Size 250, 1 Hole, 1/2in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ALNS-250-12 | Codale Part # 4465676
$34.29/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 1/2 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 250 kcmil, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Red, primary color Silver, die index 324,

Technical Information

Applications
Aluminum Compression Lug
Barrel Length
1.535 in
Barrel Type
Long, Chamfered Entry
Color Coding
Red
Conductor Material
Aluminum,Copper
Conductor Size
250 kcmil
Conductor Type
Stranded
Connection Type
Compression
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.562 in
Number of Holes
1 Hole
Size
L:3.62;W:1.264;H:0.964 IN
Standard
CSA,E2186,UL
Strip Length
40.576 mm
Stud Size
1/2 in
Temperature Rating
90 degrees C
Type
ALNS:1 HOLE LONG BARREL
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669687439
Color
Silver
Finish
Electro Tin Plated
Product UPC
78366968743
Weight
0.118 lb

Dimensions

Height
0.964 Inch
Inside Diameter
0.595 in
Length
3.62 Inch
Outside Diameter
0.924 in
Overall Length
3.62 in
Width
1.264 in
