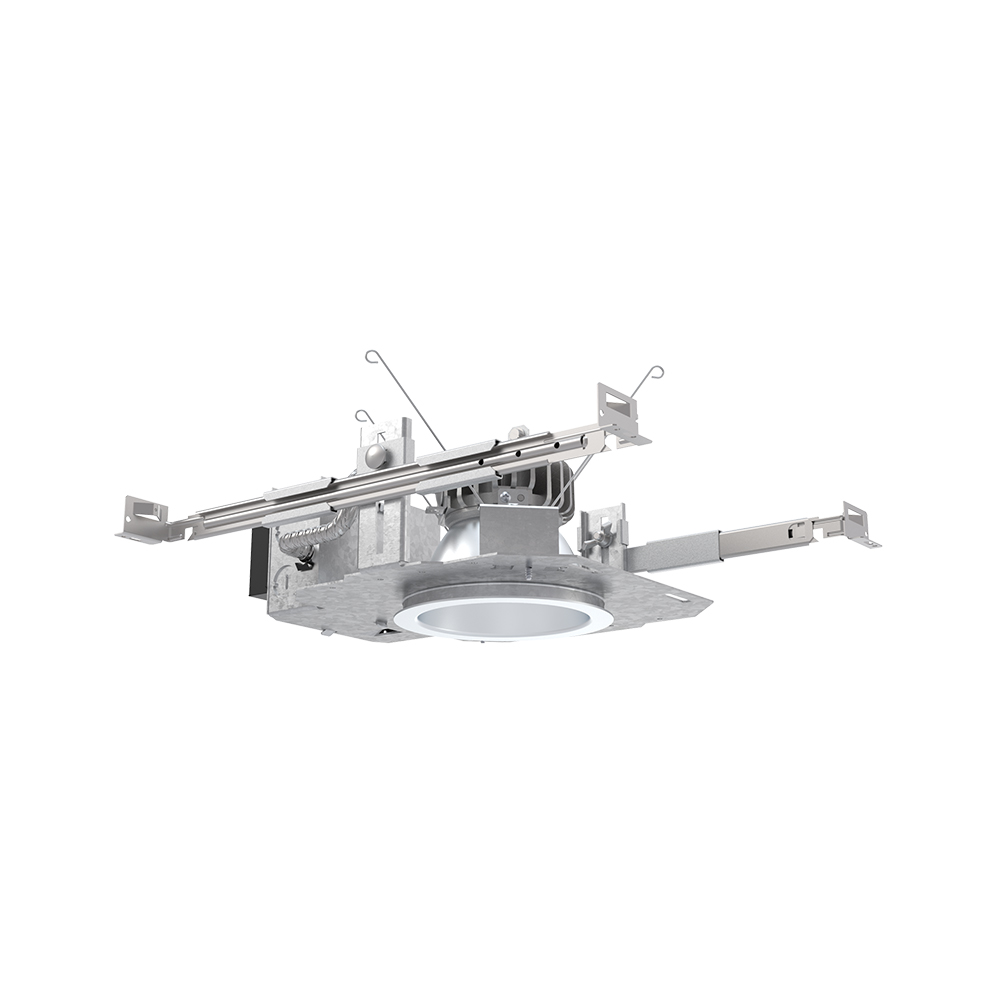

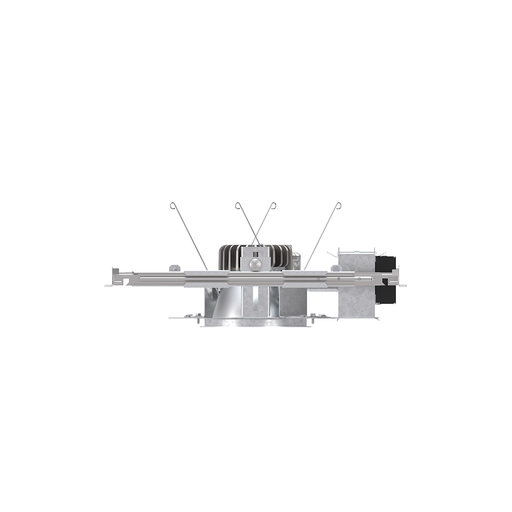

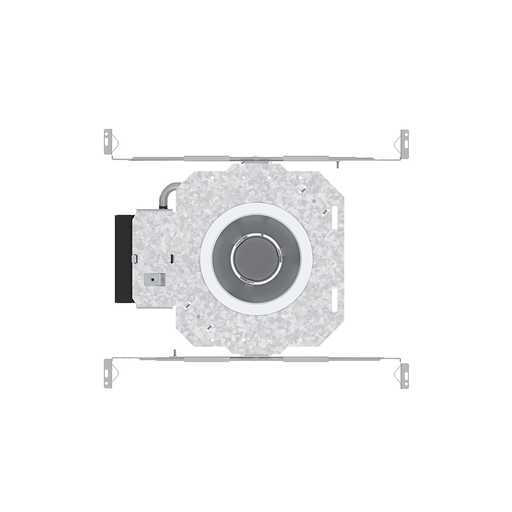

LITH LDN4 ALO2 SWW1 MVOLT UGZ HSG L

Manufacturer: Lithonia Lighting | Catalog # LDN4 ALO2 SWW1 MVOLT UGZ HSG | Codale Part # 4476788
$187.28/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
LDN 4" round, Adjustable lumen output 1000/1500/2000LM, Switchable CCT 3000k-3500k-4000k-5000k, 120/277 V, Universal dimming to 1%, Housing

Technical Information

Aperture Size
4 in
Applications
Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks,Retail
Color Rendering Index
80
Color Temperature
Variable K
Correlated Color Temp
0 K
Dimmable?
Yes
Lamp Type
LED
Lens Material
Polycarbonate
Lumens
1,000 Lumen,1500 Lumen,2000 Lumen,Switchable Lumen
Material
Steel
Mounting Type
Recessed
Number of Lamps
1
Power Source
Hardwired
Standard
CULENERGY STAR,Low UGR
Type
Housing
Voltage
120 Volt
Wattage
25.6 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
194994881117
Construction
New Construction
Environment
Indoor
Environmental Conditions
Indoor
Product Type
Housing
Product UPC
19499488111
Shape
Round
Weight
35.214 lb

Dimensions

Height
6-1/8 Inch
Length
9-3/4 Inch
Warranty Length
5 yr
Width
10.63 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • TECHNOLOGY: LDN Switchable offers switchable CCTs (3000K-3500K-4000K-5000K) and switchable lumens (ranging from 1000-2000LM) as well as a combo driver capable of handling phase dimming (120V) and 0-10V (MVOLT).
  • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life, and up to 114 LPW
  • DIMMING: MVOLT 120-277V, 0-10V and phase dimming (120V) in an all-in one driver for 10% dimming
  • RATINGS: Energy Star, Wet Location, Damp Location, Title 20
  • VOLTAGE: MVOLT 120-277V, 0-10V and phase dimming
  • HOURS OF LIFE: L80 at 60,000 hours
  • INSTALLATION: Traditional mounting frame allows for a quick installation in new construction applications
  • BATTERY: Emergency battery pack not included, available for purchase separately. Refer to spec sheet for field installed battery pack options.
  • WARRANTY: 5-year limited warranty
Application
  • Education
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Offices & Banks
  • Retail
Mounting
  • Recessed
Standard
  • cULLow UGR
