PAN A6-14RH-C Pan-Lug™ A6-14RH-C Co

Manufacturer: PANDUIT | Catalog # A6-14RH-C | Codale Part # 4480236
$354.40/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Product Catalog Page Installation / Instruction Manual

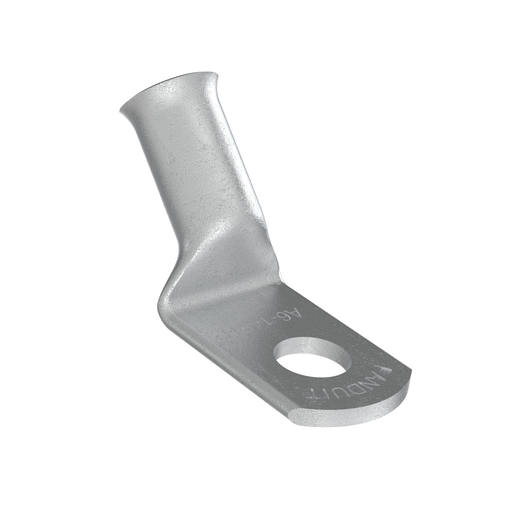

The A6-14RH-C Copper CompressionBattery Cable Lug, 6 AWG, 1/4" Stud with a 45 degree bend are tin plated to meet ASTM Class C specification for corrosion resistance. Manufactured with a standard barrel without an inspection window preventing contaminents from entering. Flared barrel entry for ease of inserting flex conductors. High pullout strength for heavy duty applications and military pullout strength requirements when using Panduit recommended tooling.

Technical Information

Barrel Length
0.5 in
Barrel Type
Standard
Cable Size
AWG
Material
Copper
Stud Size
0.25 In.
Tongue Angle
45 degrees
Tongue Thickness
0.07 in
Tongue Type
Round
Tongue Width
0.54 in
Type
Preterminated Copper Trunk, Category 6

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
613056793170
Product UPC
61305679317
Weight
1.4700 lb

Dimensions

Outer Diameter
0.31 in
Overall Length
1.33 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
India

Certifications & Compliance

Prop 65 Warning
Y
Prop 65
  • Y
Standards and Certifications
  • Standards Met: cULus Listed for use in US and Canada to UL 486A-486B for power applications, meets US Military Wire Pull Out Specs
