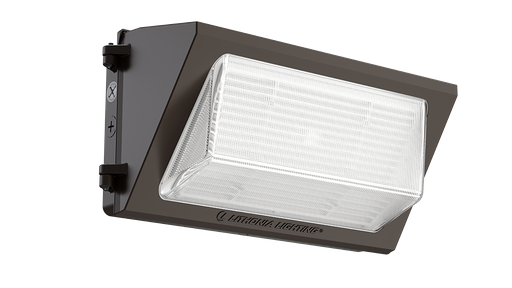

Product image for Lithonia TWR2-LED-ALO-SWW2-UVOLT-PE-DDBTXD LED Wall Pack, 8200-16100 Lumens, 120-347V, Dusk to Dawn Photocell
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Lithonia TWR2-LED-ALO-SWW2-UVOLT-PE-DDBTXD LED Wall Pack, 8200-16100 Lumens, 120-347V, Dusk to Dawn Photocell

Manufacturer: Lithonia Lighting | Catalog # TWR2LEDALOSWW2UVOLTPEDDBTXD | Codale Part # 4480513
$301.09/ea
ea
Log in or register to view your price, purchase history, and more!
6 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
TWR2V, LED, Adjustable light output, Switchable CCT- 3000K, 4000K, and 5000K, 120-347V, Photocell, buttontype, Textured dark bronze, super durable

Technical Information

Applications
Education,Hospitality,Offices & Banks
Color Rendering Index
80
Color Temperature
3000 K
Correlated Color Temp
3000 K
Dimmable?
Yes
Lamp Type
LED
Lens Material
Glass
Lumens
8,200 Lumen
Material
Aluminum
Mounting Type
Surface
Number of Lamps
1
Standard
C-UL-USDLC Premium,DLC Standard
Style
Traditional
Type
Wallpack
Voltage
120 Volt
Wattage
112 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
196183390028
Color
Bronze
Environment
Outdoor
Environmental Conditions
Outdoor
Finish
Textured
Product Type
Wallpack
Product UPC
19618339002
Shape
Rectangle
Weight
12.1 lb

Dimensions

Height
9.2 Inch
Length
7.9 Inch
Warranty Length
5 yr
Width
17.1 in

Certifications and Compliance

Country of Origin
Taiwan
Application
  • Education
  • Hospitality
  • Offices & Banks
Features
  • DESIGN: The Lithonia Lighting® TWR2 LED Wall Pack is equipped with adjustable lumen output (up to 16,100 lumens), switchable CCT (30K/40K/50K), and a switchable photocell allowing the contractor to customize to a level perfectly suited for the job site
  • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination and extended service life with energy savings of up to 86% when replacing HID wall packs
  • PHOTOCELL: Switchable photocell for dusk-to-dawn operation
  • RATINGS: UL Listed to U.S. and Canadian safety standards for wet locations, IP65 rated, DesignLights Consortium® (DLC) qualified product
  • VOLTAGE: UVOLT for 120-347V (50/60Hz)
  • HOURS OF LIFE: LEDs maintain 90% of light output at 100,000 hours of service or L90/100,000 hours
  • INSTALLATION: Designed for wall mounting above four feet from ground. Housing is configured for mounting directly over a standard 4 outlet box (by others) or for surface wiring via any of four convenient 1/2 threaded conduit entry hubs
  • BATTERY BACKUP: Not available
  • WARRANTY: 5-year limited warranty
Mounting
  • Surface
Standard
  • C-UL-USDLC Premium
  • DLC Standard
